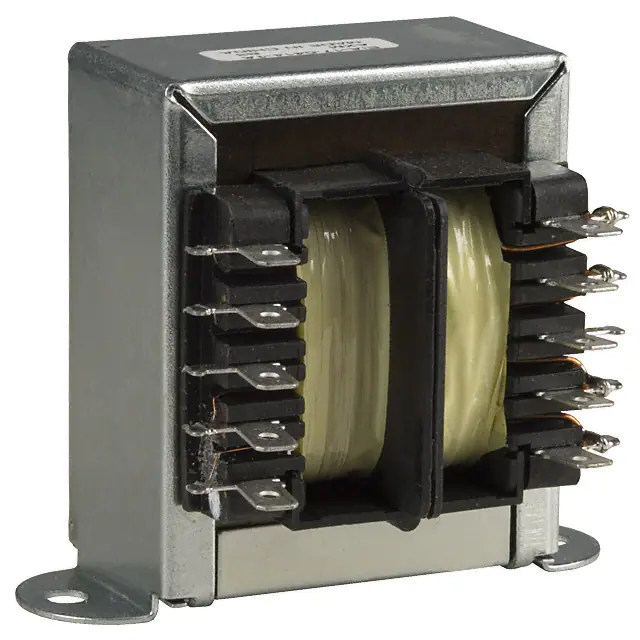

Triad Magnetics VPS36-2200

Part No.:
VPS36-2200
Manufacturer:
Triad Magnetics
Category:
Power Transformers
Package:
Datasheet:
IC Supply HubVPS36-2200.pdf
Description:
PWR XFMR LAMINATED 80VA CHAS MT
Quantity:
Payment:
Payment
Shipping:
Shipping

Inventory:1,234

Please send an inquiry. Send us your inquiry, and we will respond immediately.

Part Number
Quantity
Price
Name
Company
Email
Comments
  • Specifications
  • FAQ
  • Product Comparison
  • Tags
Product attributes
Attribute value
Manufacturer:
Triad Magnetics
Series:
Chassis Mount: World Series™
Packaging:
Box
Product Status:
Active
Type:
Laminated Core
Voltage - Primary:
115V, 230V
Voltage - Secondary (Full Load):
Parallel 18V, Series 36V
Current - Output (Max):
Parallel 4.4A, Series 2.2A
Primary Winding(s):
Dual
Secondary Winding(s):
Dual
Center Tap:
No
Power - Max:
80VA
Mounting Type:
Chassis Mount
Termination Style:
Solder, Quick Connect
Size / Dimension:
63.50mm L x 58.67mm W
Height - Seated (Max):
76.20mm
Voltage - Isolation:
4000Vrms
Weight:
2.8 lbs (1.3 kg)
