TE Connectivity Potter & Brumfield Relays KUL-11A15S-120

Part No.:
KUL-11A15S-120
Manufacturer:
TE Connectivity Potter & Brumfield Relays
Category:
Power Relays, Over 2 Amps
Package:
Datasheet:
IC Supply HubKUL-11A15S-120.pdf
Description:
RELAY GEN PURPOSE DPDT 10A 120V
Quantity:
Payment:
Payment
Shipping:
Shipping

Inventory:100

Please send an inquiry. Send us your inquiry, and we will respond immediately.

Part Number
Quantity
Price
Name
Company
Email
Comments
  • Specifications
  • FAQ
  • Product Comparison
  • Tags
Product attributes
Attribute value
Manufacturer:
TE Connectivity Potter & Brumfield Relays
Series:
KUL
Packaging:
Bulk
Product Status:
Active
Mounting Type:
Socketable
Coil Voltage:
120VAC
Contact Form:
DPDT (2 Form C)
Contact Rating (Current):
10 A
Switching Voltage:
240VAC - Max
Load - Max Switching:
2400VA
Coil Current:
32.4 mA
Coil Type:
Latching, Single Coil
Features:
-
Termination Style:
Plug In, Quick Connect - 0.187" (4.7mm)
Seal Rating:
-
Coil Insulation:
Class B
Must Operate Voltage:
102 VAC
Must Release Voltage:
-
Operate Time:
25 ms
Release Time:
25 ms
Operating Temperature:
-45°C ~ 70°C
Contact Material:
Silver Cadmium Oxide (AgCdO)
Relay Type:
General Purpose
Grade:
-
Qualification:
-

1. How to order KUL-11A15S-120 on IC Supply Hub?

Currently, IC Supply Hub only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does IC Supply Hub guarantee that KUL-11A15S-120 is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the KUL-11A15S-120. All suppliers must pass our qualification reviews before they can publish their products including KUL-11A15S-120 on IC Supply Hub; we pay more attention to the channels and quality of KUL-11A15S-120 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the KUL-11A15S-120 price and inventory displayed accurate?

The price and inventory of KUL-11A15S-120 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of KUL-11A15S-120?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the KUL-11A15S-120 we delivered, we will accept the replacement or return of the KUL-11A15S-120 only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of KUL-11A15S-120.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations

7.How to contact us to get technical supports, such as KUL-11A15S-120 pin diagram, KUL-11A15S-120 datasheet?

If you need any after-sales service, please do not hesitate to contact us.

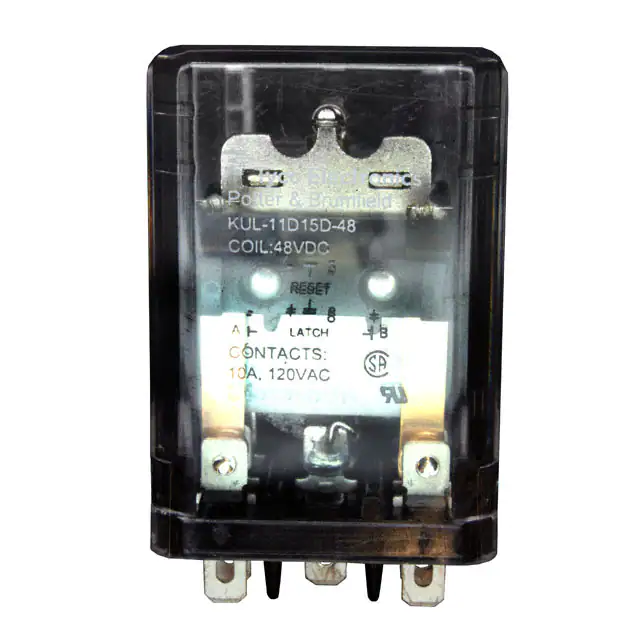

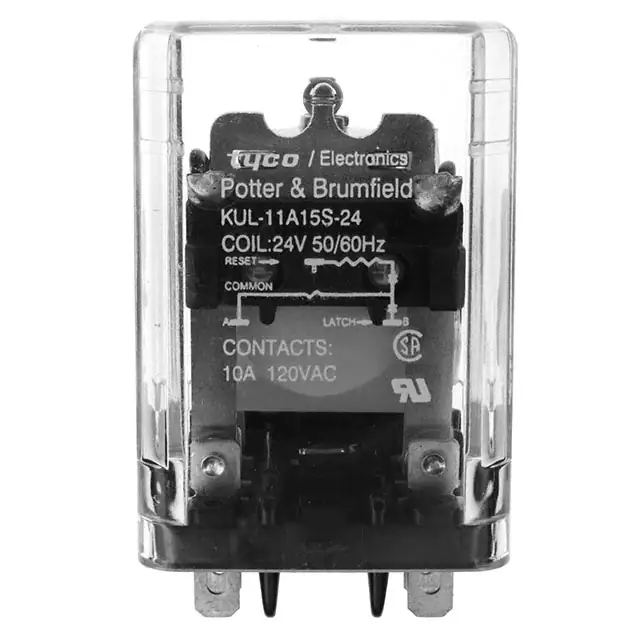

Image KUL-11A15S-120 KUL-11A15S-24 KUL-11D15D-48 KUL-11D15D-12 KUL-4230
Part Number KUL-11A15S-120 KUL-11A15S-24 KUL-11D15D-48 KUL-11D15D-12 KUL-4230
Manufacturer TE Connectivity Potter & Brumfield Relays TE Connectivity Potter & Brumfield Relays TE Connectivity Potter & Brumfield Relays TE Connectivity Potter & Brumfield Relays TE Connectivity Potter & Brumfield Relays
Series KUL KUL KUL KUL KUL
Packaging Bulk Bulk Bulk Bulk Bulk
Product Status Active Active Active Obsolete Obsolete
Mounting Type Socketable Socketable Socketable Socketable -
Coil Voltage 120VAC 24VAC 48VDC 12VDC -
Contact Form DPDT (2 Form C) DPDT (2 Form C) DPDT (2 Form C) DPDT (2 Form C) -
Contact Rating (Current) 10 A 10 A 10 A 10 A -
Switching Voltage 240VAC - Max 240VAC - Max 240VAC - Max 240VAC - Max -
Load - Max Switching 2400VA 2400VA 2400VA 2400VA -
Coil Current 32.4 mA 136.4 mA 34.3 mA 133.3 mA -
Coil Type Latching, Single Coil Latching, Single Coil Latching, Dual Coil Latching, Dual Coil -
Features - - - - -
Termination Style Plug In, Quick Connect - 0.187" (4.7mm) Plug In, Quick Connect - 0.187" (4.7mm) Plug In, Quick Connect - 0.187" (4.7mm) Plug In, Quick Connect - 0.187" (4.7mm) -
Seal Rating - - - - -
Coil Insulation Class B Class B Class B Class B -
Must Operate Voltage 102 VAC 20.4 VAC 36 VDC 9 VDC -
Must Release Voltage - - - - -
Operate Time 25 ms 25 ms 25 ms 25 ms -
Release Time 25 ms 25 ms 25 ms 25 ms -
Operating Temperature -45°C ~ 70°C -45°C ~ 70°C -45°C ~ 50°C -45°C ~ 50°C -
Contact Material Silver Cadmium Oxide (AgCdO) Silver Cadmium Oxide (AgCdO) Silver Cadmium Oxide (AgCdO) Silver Cadmium Oxide (AgCdO) -
Relay Type General Purpose General Purpose General Purpose General Purpose -
Grade - - - - -
Qualification - - - - -
