OptiFuse RS60RB-010

Part No.:
RS60RB-010
Manufacturer:
OptiFuse
Category:
PTC Resettable Fuses
Package:
Radial, Disc
Datasheet:
IC Supply HubRS60RB-010.pdf
Description:
PTC RESET FUSE 60V 100MA RADIAL
Quantity:
Payment:
Payment
Shipping:
Shipping

Inventory:4,000

Please send an inquiry. Send us your inquiry, and we will respond immediately.

Part Number
Quantity
Price
Name
Company
Email
Comments
  • Specifications
  • FAQ
  • Product Comparison
  • Tags
Product attributes
Attribute value
Manufacturer:
OptiFuse
Package/Case:
Radial, Disc
Series:
RS60RB
Packaging:
Bulk
Product Status:
Active
Type:
Polymeric
Voltage - Max:
60V
Current - Hold (Ih) (Max):
100 mA
Current - Trip (It):
200 mA
Current - Max:
40 A
Time to Trip:
4 s
Resistance - Initial (Ri) (Min):
2.5 Ohms
Resistance - Post Trip (R1) (Max):
7.5 Ohms
Resistance - 25°C (Typ):
-
Operating Temperature:
-40°C ~ 85°C
Grade:
-
Qualification:
-
Ratings:
-
Mounting Type:
Through Hole
Size / Dimension:
0.291" Dia x 0.122" T (7.40mm x 3.10mm)
Height - Seated (Max):
0.500" (12.70mm)
Thickness (Max):
-
Lead Spacing:
0.201" (5.10mm)

1. How to order RS60RB-010 on IC Supply Hub?

Currently, IC Supply Hub only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does IC Supply Hub guarantee that RS60RB-010 is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the RS60RB-010. All suppliers must pass our qualification reviews before they can publish their products including RS60RB-010 on IC Supply Hub; we pay more attention to the channels and quality of RS60RB-010 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the RS60RB-010 price and inventory displayed accurate?

The price and inventory of RS60RB-010 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of RS60RB-010?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the RS60RB-010 we delivered, we will accept the replacement or return of the RS60RB-010 only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of RS60RB-010.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations

7.How to contact us to get technical supports, such as RS60RB-010 pin diagram, RS60RB-010 datasheet?

If you need any after-sales service, please do not hesitate to contact us.

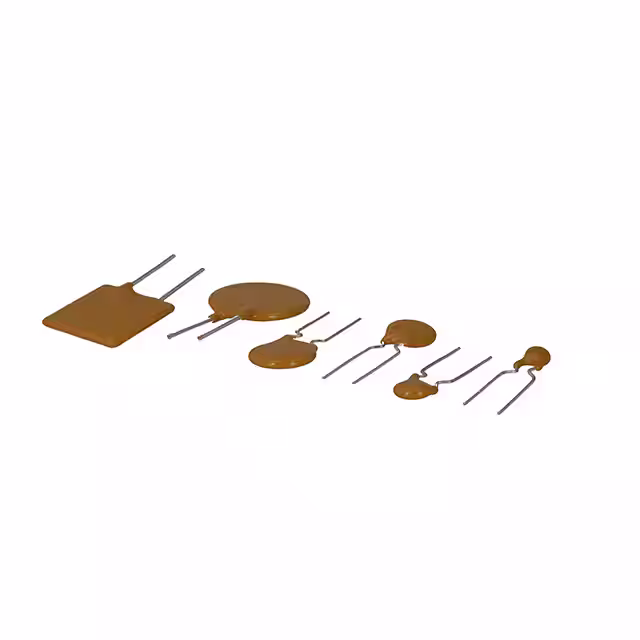

Image RS60RB-025 RS60RB-010 RS60RB-075 RS60RB-160 RS60RB-005
Part Number RS60RB-025 RS60RB-010 RS60RB-075 RS60RB-160 RS60RB-005
Manufacturer OptiFuse OptiFuse OptiFuse OptiFuse OptiFuse
Package/Case Radial, Disc Radial, Disc Radial, Disc Radial, Disc Radial, Disc
Series RS60RB RS60RB RS60RB RS60RB -
Packaging Bulk Bulk Bulk Bulk Bulk
Product Status Active Active Active Active Active
Type Polymeric Polymeric Polymeric Polymeric Polymeric
Voltage - Max 60V 60V 60V 60V 60V
Current - Hold (Ih) (Max) 250 mA 100 mA 750 mA 1.6 A 50 mA
Current - Trip (It) 500 mA 200 mA 1.5 A 3.2 A 100 mA
Current - Max 40 A 40 A 40 A 40 A 40 A
Time to Trip 2.5 s 4 s 6.3 s 11.4 s 5 s
Resistance - Initial (Ri) (Min) 1.25 Ohms 2.5 Ohms 250 mOhms 90 mOhms 7.3 Ohms
Resistance - Post Trip (R1) (Max) 3 Ohms 7.5 Ohms 600 mOhms 220 mOhms 20 Ohms
Resistance - 25°C (Typ) - - - - -
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Grade - - - - -
Qualification - - - - -
Ratings - - - - -
Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole
Size / Dimension 0.291" Dia x 0.122" T (7.40mm x 3.10mm) 0.291" Dia x 0.122" T (7.40mm x 3.10mm) 0.409" Dia x 0.122" T (10.40mm x 3.10mm) 0.642" Dia x 0.122" T (16.30mm x 3.10mm) 0.642" Dia x 0.122" T (16.30mm x 3.10mm)
Height - Seated (Max) 0.500" (12.70mm) 0.500" (12.70mm) 0.598" (15.20mm) 0.839" (21.30mm) 0.839" (21.30mm)
Thickness (Max) - - - - -
Lead Spacing 0.201" (5.10mm) 0.201" (5.10mm) 0.201" (5.10mm) 0.201" (5.10mm) 0.201" (5.10mm)
