Hammond Manufacturing 850G

Part No.:
850G
Manufacturer:
Hammond Manufacturing
Category:
Audio Transformers
Package:
Datasheet:
IC Supply Hub850G.pdf
Description:
XFMR 600 150/150 / 600 150/150
Quantity:
Payment:
Payment
Shipping:
Shipping

Inventory:0

Please send an inquiry. Send us your inquiry, and we will respond immediately.

Part Number
Quantity
Price
Name
Company
Email
Comments
  • Specifications
  • FAQ
  • Product Comparison
  • Tags
Product attributes
Attribute value
Manufacturer:
Hammond Manufacturing
Series:
850
Packaging:
Bulk
Product Status:
Obsolete
Turns Ratio - Primary:Secondary:
-
Impedance - Primary (Ohms):
600, 150/150
Impedance - Secondary (Ohms):
600, 150/150
DC Resistance (DCR) - Primary:
71Ohm
DC Resistance (DCR) - Secondary:
71Ohm
Transformer Type:
Broadcast Quality
Frequency Range:
20Hz ~ 20kHz
Frequency Response:
±0.5dB
Voltage - Isolation:
-
Insertion Loss:
1dB
Return Loss:
-
Power Level:
15dB
Operating Temperature:
-
Approval Agency:
-
Mounting Type:
Chassis Mount
Size / Dimension:
1.700" L x 1.200" W (43.18mm x 30.48mm)
Height - Seated (Max):
1.650" (41.91mm)
Termination Style:
Solder Lug

1. How to order 850G on IC Supply Hub?

Currently, IC Supply Hub only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does IC Supply Hub guarantee that 850G is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the 850G. All suppliers must pass our qualification reviews before they can publish their products including 850G on IC Supply Hub; we pay more attention to the channels and quality of 850G products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the 850G price and inventory displayed accurate?

The price and inventory of 850G fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of 850G?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the 850G we delivered, we will accept the replacement or return of the 850G only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of 850G.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations

7.How to contact us to get technical supports, such as 850G pin diagram, 850G datasheet?

If you need any after-sales service, please do not hesitate to contact us.

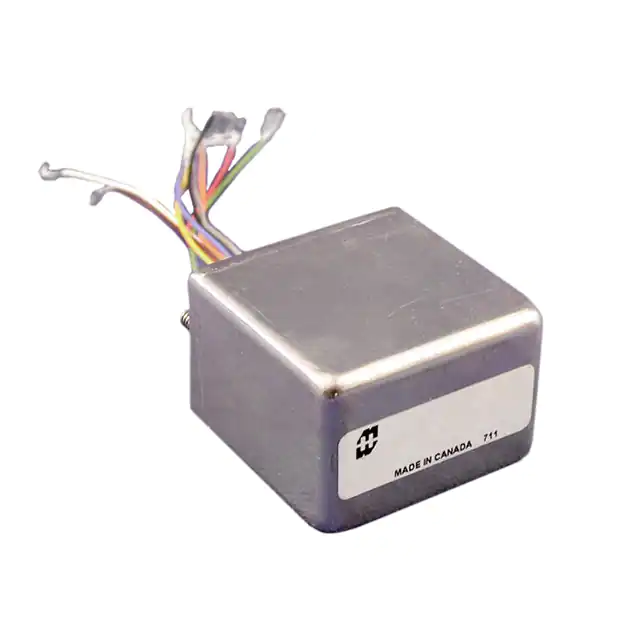

Image 850GA 850G
Part Number 850GA 850G
Manufacturer Hammond Manufacturing Hammond Manufacturing
Series 850A 850
Packaging Bulk Bulk
Product Status Active Obsolete
Turns Ratio - Primary:Secondary - -
Impedance - Primary (Ohms) 600, 150/150 600, 150/150
Impedance - Secondary (Ohms) 600, 150/150 600, 150/150
DC Resistance (DCR) - Primary 71Ohm 71Ohm
DC Resistance (DCR) - Secondary 71Ohm 71Ohm
Transformer Type - Broadcast Quality
Frequency Range 20Hz ~ 20kHz 20Hz ~ 20kHz
Frequency Response ±0.5dB ±0.5dB
Voltage - Isolation - -
Insertion Loss 1dB 1dB
Return Loss - -
Power Level 15dB 15dB
Operating Temperature - -
Approval Agency - -
Mounting Type Chassis Mount Chassis Mount
Size / Dimension 1.700" L x 1.200" W (43.18mm x 30.48mm) 1.700" L x 1.200" W (43.18mm x 30.48mm)
Height - Seated (Max) 1.650" (41.90mm) 1.650" (41.91mm)
Termination Style Wire Leads Solder Lug
