Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BE12-4A85-MHIGH VOLTAGE REED RELAY, FORM 4A Standex-Meder Electronics |
94 |
|
Datasheet |
BE | Tube | Active | Through Hole | 12VDC | 4PST-NO (4 Form A) | 1 A | 1000VAC, 1000VDC - Max | 46.2 mA | Non Latching | - | PC Pin | Sealed - Fully | 8.4 VDC | 0.75 VDC | 1.1 ms | 100 µs | -20°C ~ 70°C | - |
|
BE24-1A85-PRELAY REED SPST 1A 24V Standex-Meder Electronics |
82 |
|
Datasheet |
BE | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 17.1 mA | Non Latching | - | PC Pin | Sealed - Fully | 16.8 VDC | 3.6 VDC | 1 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
BE12-2A85-PRELAY REED DPST 1A 12V Standex-Meder Electronics |
48 |
|
Datasheet |
BE | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 1 A | 1000VAC, 1000VDC - Max | 28.6 mA | Non Latching | - | PC Pin | Sealed - Fully | 8.4 VDC | 1.8 VDC | 1 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
HI12-1A85RELAY REED SPST-NO 1A 12V Standex-Meder Electronics |
65 |
|
Datasheet |
HI | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 13 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.8 VDC | 1.1 ms | 0.1 ms | -20°C ~ 70°C | - |
|
MRX05-1A71REED RELAY SPST-NO 5V ATEX PLAST Standex-Meder Electronics |
76 |
|
Datasheet |
MRX | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 14 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.8 VDC | 1 VDC | 0.5 ms | 0.1 ms | -40°C ~ 85°C | - |
|

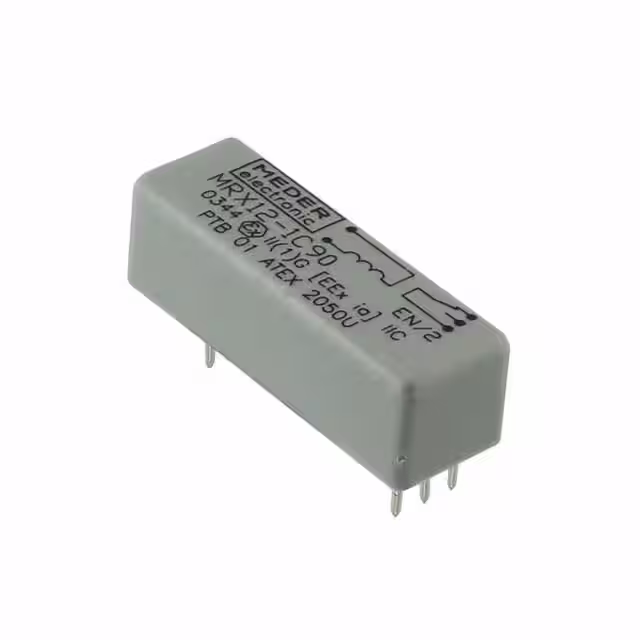

MRX12-1C90REED RELAY SPDT CHANGE 12V ATEX Standex-Meder Electronics |
49 |
|
Datasheet |
MRX | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 240 mA | 28VAC, 28VDC - Max | 9 mA | Non Latching | - | PC Pin | Sealed - Fully | 9 VDC | 2 VDC | 2 ms | 2 ms | -20°C ~ 85°C | - |
|
|
BH12-4A85-MHIGH VOLTAGE AND INSULATION REED Standex-Meder Electronics |
22 |
|
- |
BH | Bulk | Active | Through Hole | 12VDC | 4PST-NO (4 Form A) | 1 A | 1000VAC, 1000VDC - Max | 30 mA | Non Latching | - | PC Pin | - | 8.8 VDC | 1.2 VDC | 1.1 ms | 400 µs | -20°C ~ 70°C | - |
|
|
MRX12-1A71REED RELAY SPST-NO 12V ATEX PLAS Standex-Meder Electronics |
96 |
|
Datasheet |
MRX | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 mA | Non Latching | - | PC Pin | Sealed - Fully | 9 VDC | 2 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
BT24-2A66RELAY REED DPST 500MA 24V Standex-Meder Electronics |
52 |
|
Datasheet |
BT | Tube | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 1.2 mA | Non Latching | - | PC Pin | - | 18 VDC | 3.5 VDC | 0.5 ms | 0.1 ms | -20°C ~ 85°C | - |
|
HE12-1B83RELAY REED SPST 3A 12V Standex-Meder Electronics |
9 |
|
Datasheet |
HE | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 3 A | 7500VAC, 7500VDC - Max | 30 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C | - |
