Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NP05-2A66-500-220RELAY REED DPST 500MA 5V Standex-Meder Electronics |
0 |
|
Datasheet |
NP | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | EMI Shielded | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
NP05-1C90-500-250RELAY REED SPDT 250MA 5V Standex-Meder Electronics |
0 |
|
Datasheet |
NP | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 175VAC, 175VDC - Max | 10 mA | Non Latching | EMI Shielded | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.7 ms | 1.5 ms | -20°C ~ 70°C | - |
|

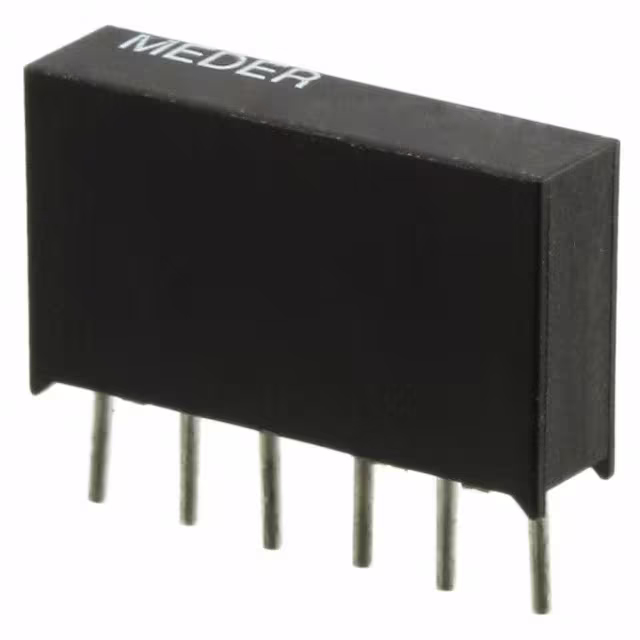

MS05-2A87-78LRELAY REED DPST 500MA 5V Standex-Meder Electronics |
0 |
|
Datasheet |
MS | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 13.4 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
BT12-2A66LOW THERMOVOLTAGE REED RELAY, FO Standex-Meder Electronics |
0 |
|
- |
BT | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 2.4 mA | Non Latching | - | PC Pin | - | 9 VDC | 2 VDC | 0.5 ms | 100 µs | -20°C ~ 85°C | - |
|
|
BT05-2A85-MLOW THERMOVOLTAGE REED RELAY, FO Standex-Meder Electronics |
0 |
|
- |
BT | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 1 A | 1000VAC, 1000VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 1 VDC | 1.1 ms | 100 µs | -20°C ~ 70°C | - |
|
|
BT12-2A85-MLOW THERMOVOLTAGE REED RELAY, FO Standex-Meder Electronics |
0 |
|
- |
BT | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 1 A | 1000VAC, 1000VDC - Max | 4.3 mA | Non Latching | - | PC Pin | - | 9 VDC | 2 VDC | 1.1 ms | 0.5 ms | -20°C ~ 70°C | - |
|
HE24-1C22RELAY REED SPDT 3A 24V Standex-Meder Electronics |
0 |
|
- |
HE | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 3 A | 7500VAC, 7500VDC - Max | - | Non Latching | - | PC Pin | - | 18 VDC | 3.5 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C | - |
|

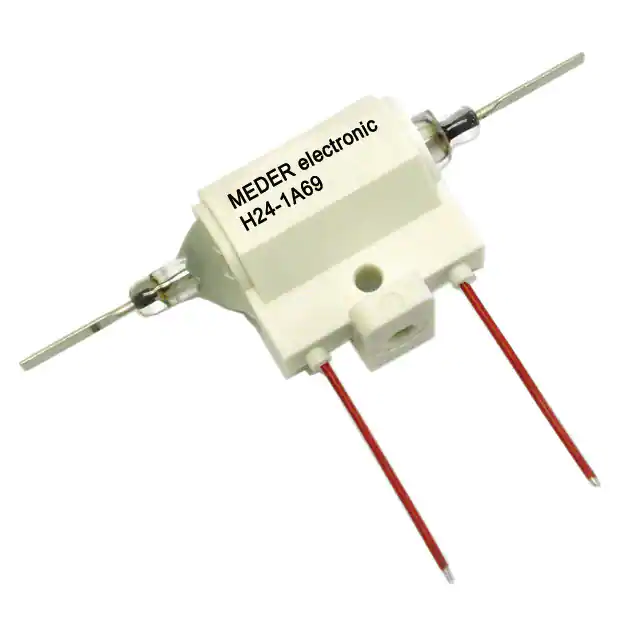

H24-1A69RELAY REED SPST 3A 24V Standex-Meder Electronics |
0 |
|
Datasheet |
H | Bulk | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 3 A | 10000VAC, 10000VDC - Max | 34.3 mA | Non Latching | - | Wire Leads | - | 16.8 VDC | 3.6 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C | - |
|
MS05-1A71-75LHRRELAY REED SPST 500MA 5V Standex-Meder Electronics |
0 |
|
Datasheet |
MS | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 65°C | - |
|
|
HE05-1A83-02RELAY REED SPST 3A 5V Standex-Meder Electronics |
0 |
|
Datasheet |
HE | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 100 mA | Non Latching | - | PC Pin | - | 4 VDC | 0.75 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C | - |
