Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

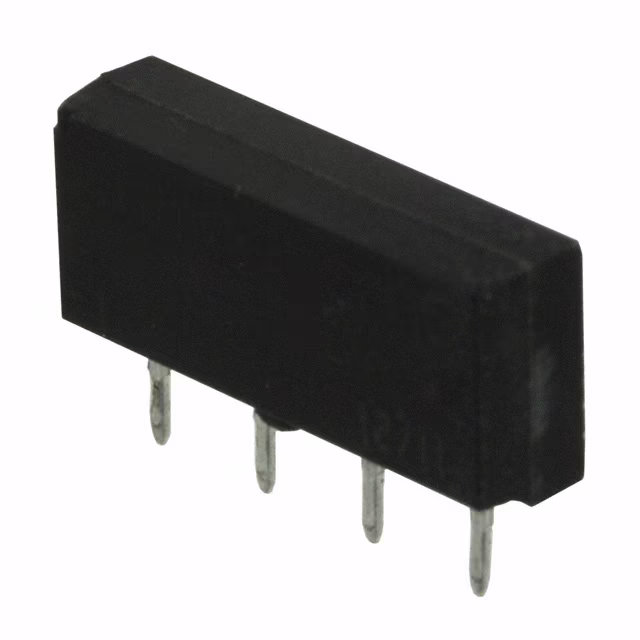

MS05-1A87-75LHRRELAY REED SPST 500MA 5V Standex-Meder Electronics |
208 |
|
Datasheet |
MS | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|

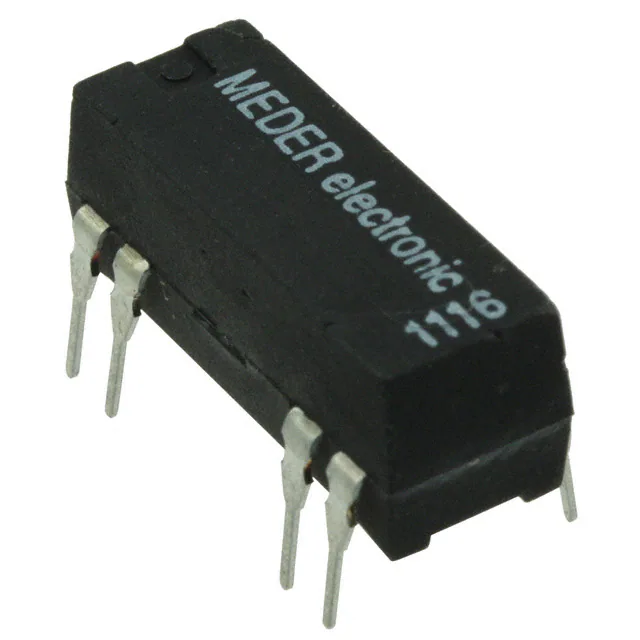

DIP12-1A72-12DRELAY REED SPST 1A 12V Standex-Meder Electronics |
264 |
|
Datasheet |
DIP | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 8.4 VDC | 1.8 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
KT12-1A-40L-THTREED RELAY 1 FORM A 12V TH Standex-Meder Electronics |
4,643 |
|
Datasheet |
KT | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 25 mA | Non Latching | - | PC Pin | Sealed - Fully | 9 VDC | 1 VDC | - | - | -40°C ~ 100°C | - |
|

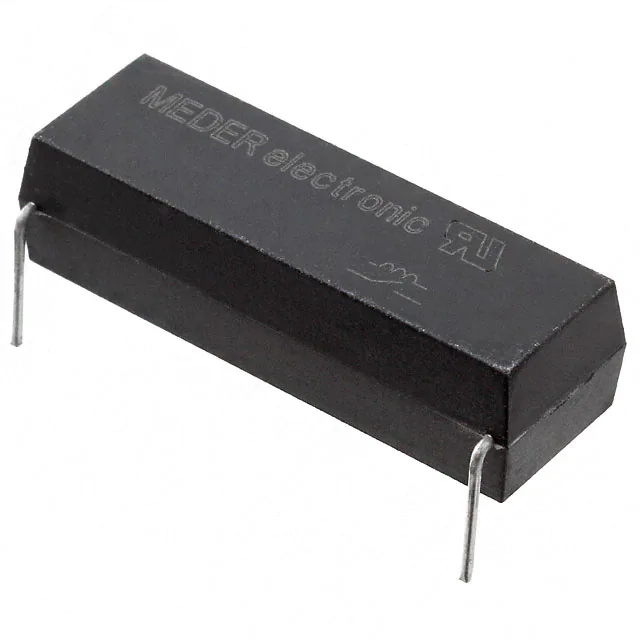

KT05-1A-40L-THTREED RELAY 1 FORM A 5V TH Standex-Meder Electronics |
2,332 |
|
Datasheet |
KT | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 63 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.5 VDC | 0.5 VDC | - | - | -40°C ~ 100°C | - |
|
KT24-1A-40L-THTREED RELAY 1 FORM A 24V TH Standex-Meder Electronics |
1,856 |
|
Datasheet |
KT | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 13.3 mA | Non Latching | - | PC Pin | Sealed - Fully | 16 VDC | 2.9 VDC | - | - | -40°C ~ 100°C | - |
|

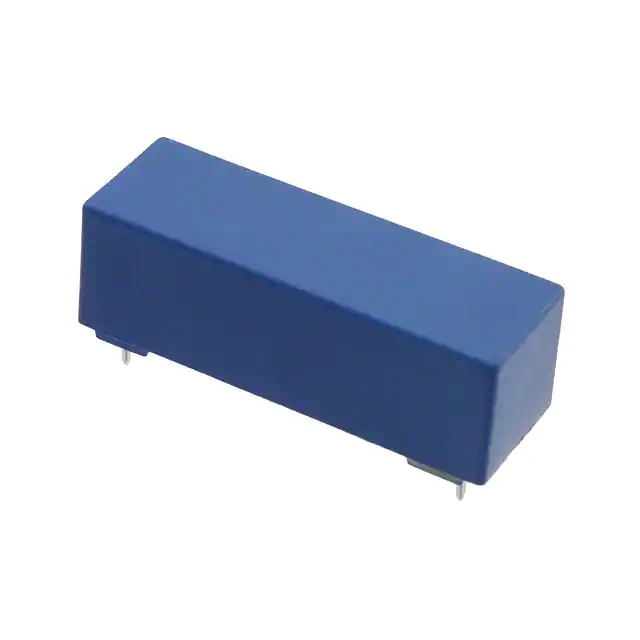

LI05-1A85RELAY REED SPST 1A 5V Standex-Meder Electronics |
2,499 |
|
Datasheet |
LI | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 25 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.5 VDC | 0.75 VDC | 1.1 ms | 0.1 ms | -20°C ~ 70°C | - |
|
H24-1A83RELAY REED SPST 3A 24V Standex-Meder Electronics |
40 |
|
Datasheet |
H | Bulk | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 34.3 mA | Non Latching | - | Wire Leads | - | 18 VDC | 2 VDC | 3.2 ms | 1.5 ms | -20°C ~ 70°C | - |
|
SIL24-1A72-71LRELAY REED SPST 0.5A 24V Standex-Meder Electronics |
414 |
|
Datasheet |
SIL | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.7 ms | 0.1 ms | -20°C ~ 70°C | - |
|
DIP05-1A72-13LRELAY REED SPST 1A 5V Standex-Meder Electronics |
134 |
|
Datasheet |
DIP | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
DIP05-1A72-12LRELAY REED SPST 1A 5V Standex-Meder Electronics |
235 |
|
Datasheet |
DIP | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
