Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

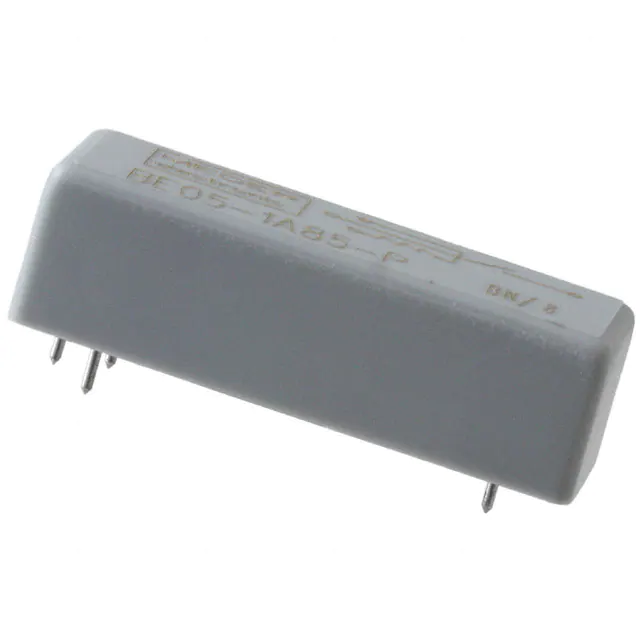

BE05-2A85-PRELAY REED DPST 1A 5V Standex-Meder Electronics |
1,709 |
|
Datasheet |
BE | Bulk | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 1 A | 1000VAC, 1000VDC - Max | 71.4 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.5 VDC | 0.75 VDC | 1 ms | 0.1 ms | -20°C ~ 70°C | - |
|

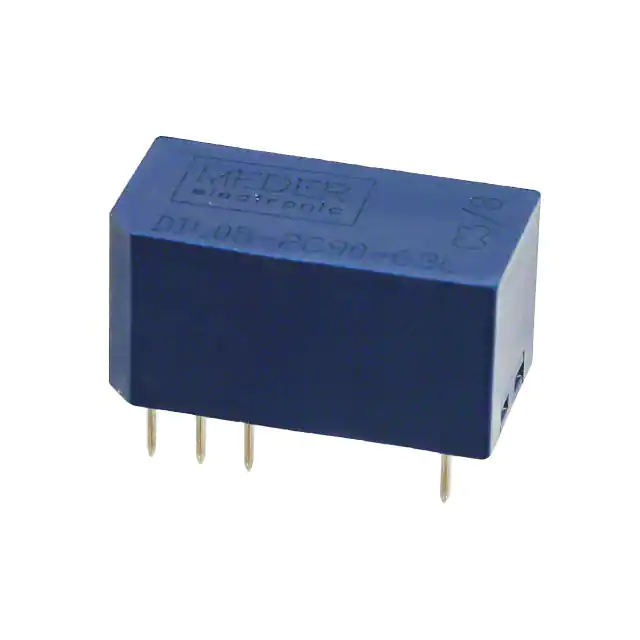

DIL05-2C90-63LRELAY REED DPDT 250MA 5V Standex-Meder Electronics |
218 |
|
Datasheet |
DIL | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 250 mA | 175VAC, 175VDC - Max | 33.4 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.5 VDC | 0.75 VDC | 0.7 ms | 1.5 ms | -20°C ~ 70°C | - |
|

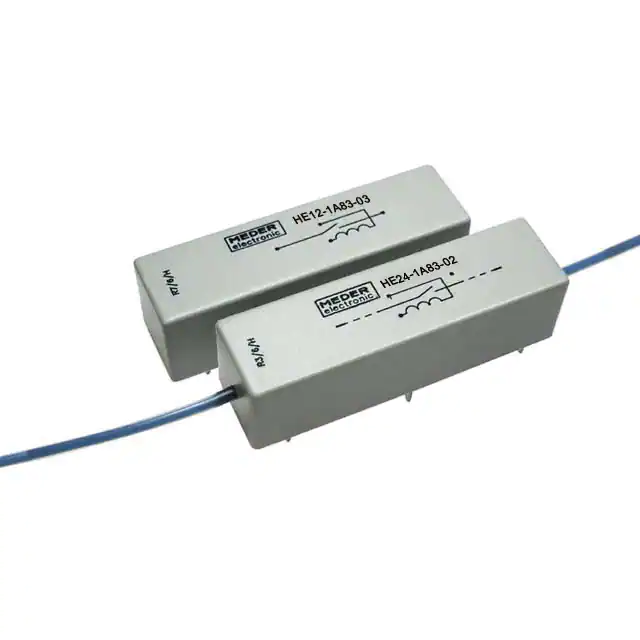

HE24-1A83-02RELAY REED SPST 3A 24V Standex-Meder Electronics |
358 |
|
Datasheet |
HE | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 23.1 mA | Non Latching | - | PC Pin | - | 18 VDC | 2.5 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C | - |
|

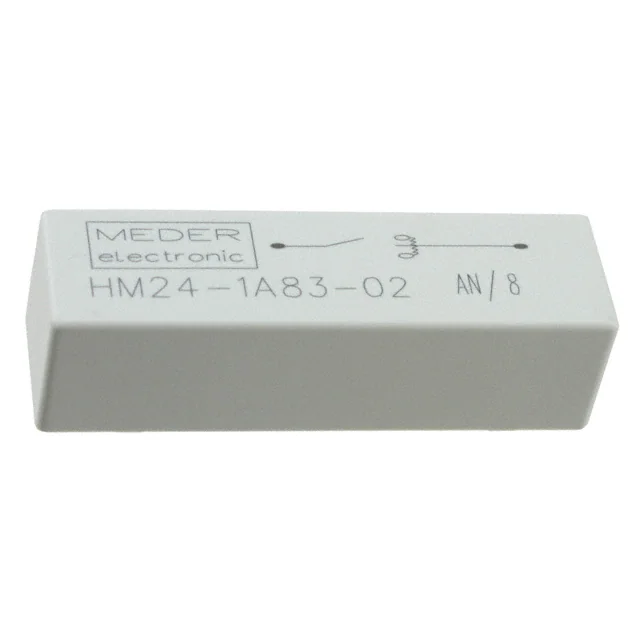

HM24-1A83-02RELAY REED SPST 3A 24V Standex-Meder Electronics |
641 |
|
Datasheet |
HM | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C | - |
|

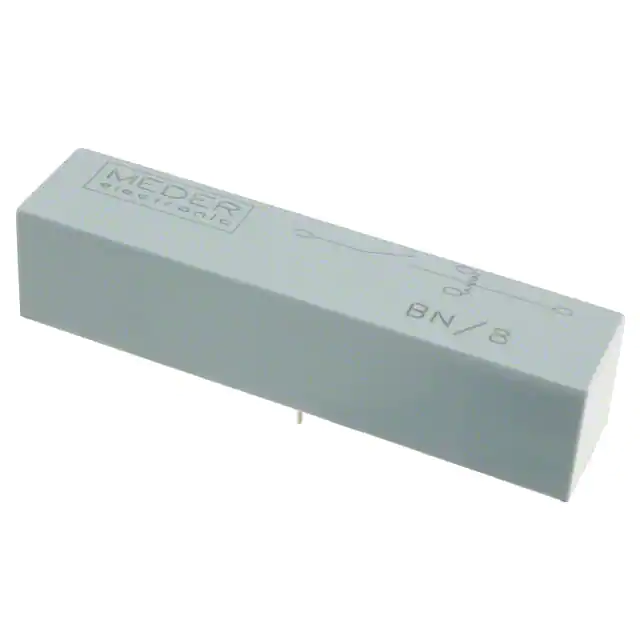

HE12-1A69-02RELAY REED SPST 3A 12V Standex-Meder Electronics |
55 |
|
Datasheet |
HE | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 10000VAC, 10000VDC - Max | 46.2 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C | - |
|

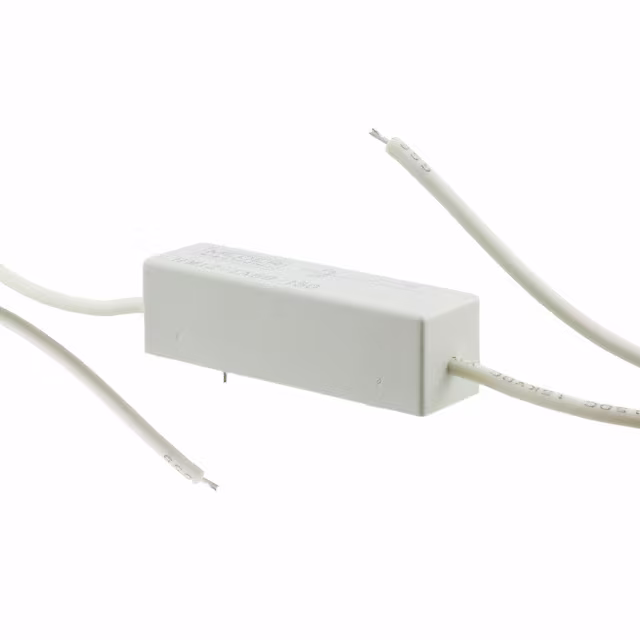

HM12-1A69-150RELAY REED SPST 3A 12V Standex-Meder Electronics |
363 |
|
Datasheet |
HM | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 10000VAC, 10000VDC - Max | 80 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C | - |
|
SIL12-1A72-71LRELAY REED SPST 0.5A 12V Standex-Meder Electronics |
694 |
|
Datasheet |
SIL | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.8 VDC | 0.7 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
SIL05-1A72-71DRELAY REED SPST 0.5A 5V Standex-Meder Electronics |
1,289 |
|
Datasheet |
SIL | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.7 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
SIL12-1A72-71DRELAY REED SPST 0.5A 12V Standex-Meder Electronics |
1,171 |
|
Datasheet |
SIL | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 8.4 VDC | 1.8 VDC | 0.7 ms | 0.1 ms | -20°C ~ 70°C | - |
|
DIP05-1A72-12DRELAY REED SPST 1A 5V Standex-Meder Electronics |
332 |
|
Datasheet |
DIP | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
