Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
784771470FIXED IND 47UH 2.3A 77 MOHM SMD Würth Elektronik |
1,670 |
|
Datasheet |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 47 µH | ±20% | 2.3 A | 2.5A | Shielded | 77mOhm Max | - | 10.1MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1260 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.248" (6.30mm) |
|
|
784771220FIXED IND 22UH 3.2A 40 MOHM SMD Würth Elektronik |
1,420 |
|
Datasheet |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 22 µH | ±20% | 3.2 A | 3.5A | Shielded | 40mOhm Max | - | 14.9MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1260 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.248" (6.30mm) |
|

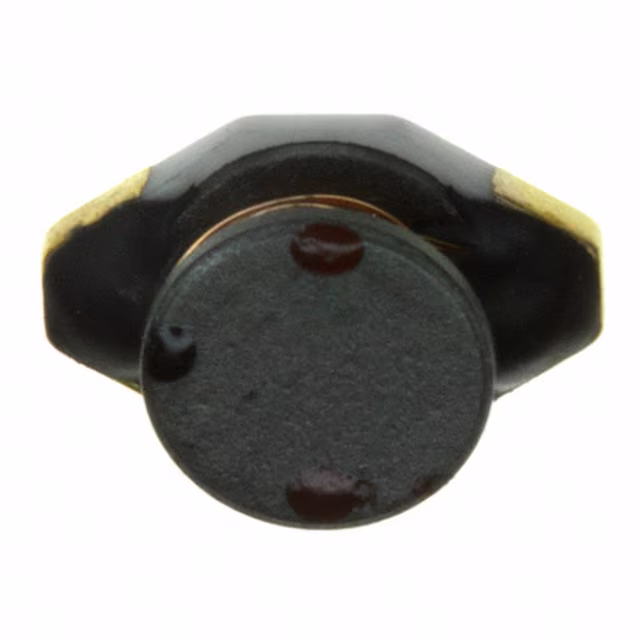

7445520FIXED IND 100UH 300MA 1.27OHM SM Würth Elektronik |
1,359 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 300 mA | 310mA | Unshielded | 1.27Ohm Max | - | 8MHz | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|

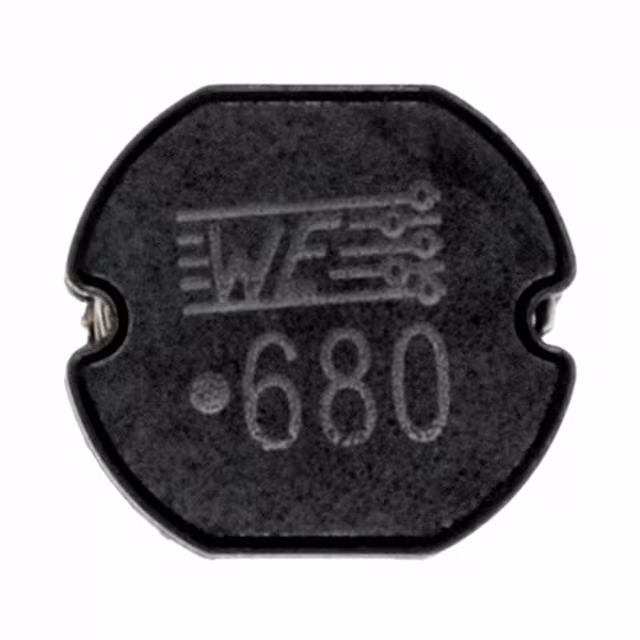

744776168FIXED IND 68UH 1.19A 220MOHM SMD Würth Elektronik |
1,239 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 1.19 A | 1.49A | Unshielded | 220mOhm Max | - | 9MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|
74455233330UH INDUCTOR 20% Würth Elektronik |
1,220 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 160 mA | 180mA | Unshielded | 5Ohm Max | - | 4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
784771101FIXED IND 100UH 1.5A 174MOHM SMD Würth Elektronik |
1,178 |
|
Datasheet |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 100 µH | ±20% | 1.5 A | 1.7A | Shielded | 174mOhm Max | - | 6.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1260 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.248" (6.30mm) |
|
78438367047WE-MAIA SMT POWER INDUCTOR Würth Elektronik |
1,148 |
|
Datasheet |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 4.7 µH | ±20% | 5.5 A | 5.4A | Shielded | 34.5mOhm Max | - | 18.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.122" (3.10mm) |
|
|
74456025IND CHOKE 2.5UH 100KHZ Würth Elektronik |
1,133 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.5 µH | ±20% | 5.8 A | 10A | Unshielded | 12mOhm Max | - | 65MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|

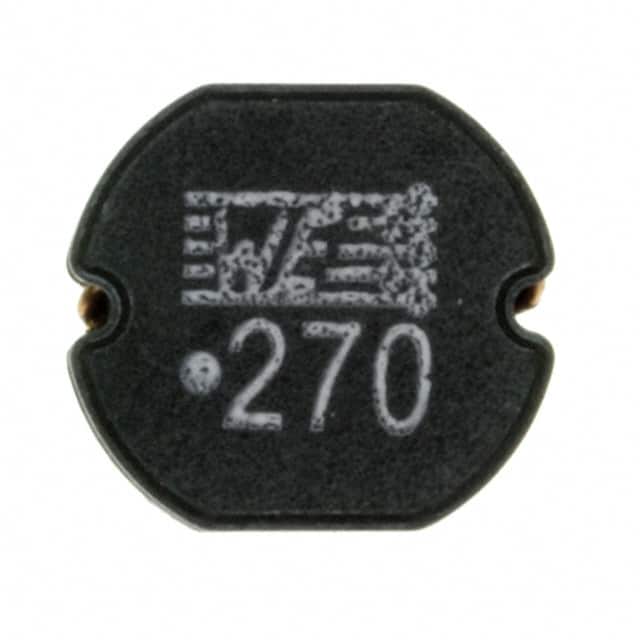

744776127FIXED IND 27UH 1.95A 110MOHM SMD Würth Elektronik |
951 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 1.95 A | 1.98A | Unshielded | 110mOhm Max | - | 15MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|
|
78438367022WE-MAIA SMT POWER INDUCTOR Würth Elektronik |
949 |
|
Datasheet |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 2.2 µH | ±20% | 7.5 A | 7.5A | Shielded | 16.1mOhm Max | - | 28MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.122" (3.10mm) |
