Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744731471FIXED IND 470UH 600MA 1.3 OHM TH Würth Elektronik |
190 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 600 mA | 400mA | Shielded | 1.3Ohm Max | - | 2.3MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
|
744731332FIXED IND 3.3MH 180MA 8 OHM TH Würth Elektronik |
178 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±10% | 180 mA | 150mA | Shielded | 8Ohm Max | - | 1MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
7443330047FIXED IND 470NH 20.5A 1.85 MOHM Würth Elektronik |
139 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 20.5 A | 47A | Shielded | 1.85mOhm Max | - | 160MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.382" (9.70mm) |
|

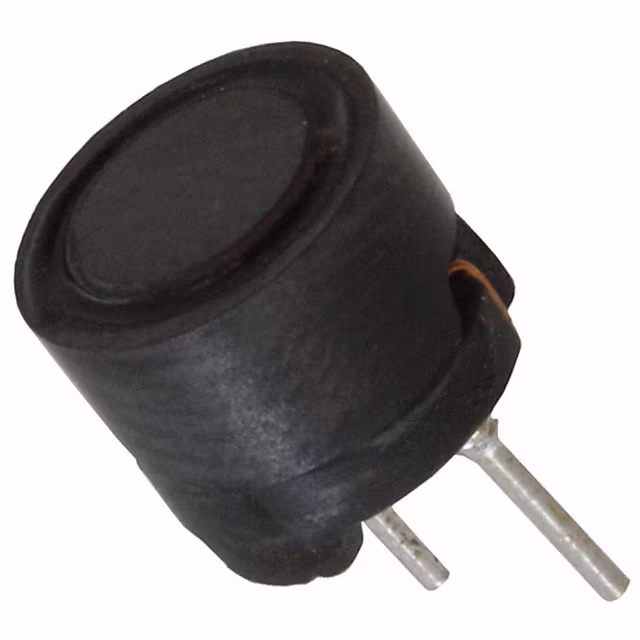

744731680FIXED IND 68UH 1.5A 200 MOHM TH Würth Elektronik |
137 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 1.5 A | 1A | Shielded | 200mOhm Max | - | 6.3MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
|
744731822FIXED IND 8.2MH 100MA 16 OHM TH Würth Elektronik |
133 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 8.2 mH | ±10% | 100 mA | 50mA | Shielded | 16Ohm Max | - | 600kHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
7847709150FIXED IND 15UH 4.6A 36 MOHM SMD Würth Elektronik |
654 |
|
Datasheet |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 15 µH | ±20% | 4.6 A | 5.7A | Shielded | 36mOhm Max | - | 22MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1280 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.406" (10.30mm) |
|
74455047FIXED IND 4.7UH 1.5A 90 MOHM SMD Würth Elektronik |
6,691 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.5 A | 1.5A | Unshielded | 90mOhm Max | - | 37MHz | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|

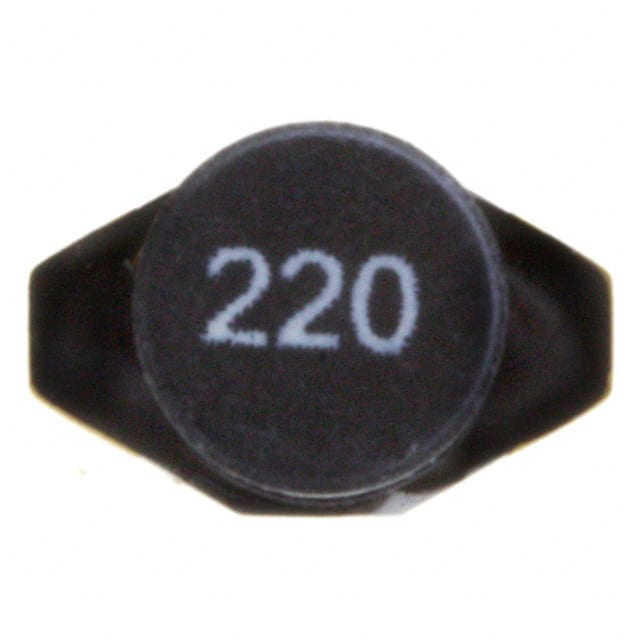

74455122FIXED IND 22UH 800MA 370MOHM SMD Würth Elektronik |
2,387 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 800 mA | 700mA | Unshielded | 370mOhm Max | - | 16MHz | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|

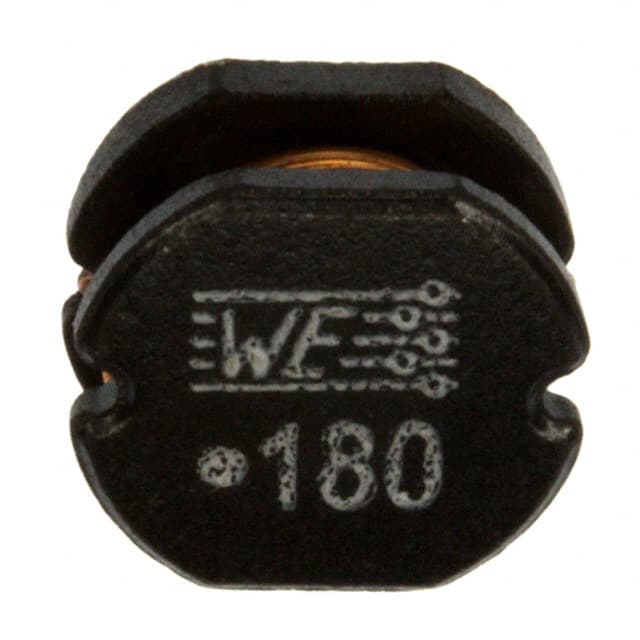

744776118FIXED IND 18UH 2.36A 90 MOHM SMD Würth Elektronik |
2,273 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 2.36 A | 2.43A | Unshielded | 90mOhm Max | - | 19MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|
744776115FIXED IND 15UH 2.47A 80 MOHM SMD Würth Elektronik |
1,773 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.47 A | 2.88A | Unshielded | 80mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
