FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPCC8065-H,LQ(SMOSFET N-CH 30V 13A 8TSON |
0 |
|
Datasheet |
U-MOSVII-H | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 13A (Ta) | 4.5V, 10V | 11.4mOhm @ 6.5A, 10V | 2.3V @ 200µA | 20 nC @ 10 V | ±20V | 1350 pF @ 10 V | - | 700mW (Ta), 18W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-TSON Advance (3.1x3.1) |
|
|
TPCC8066-H,LQ(SMOSFET N-CH 30V 11A 8TSON |
0 |
|
Datasheet |
U-MOSVII-H | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4.5V, 10V | 15mOhm @ 5.5A, 10V | 2.3V @ 100µA | 15 nC @ 10 V | ±20V | 1100 pF @ 10 V | - | 700mW (Ta), 17W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-TSON Advance (3.1x3.1) |
|
|
TPCC8067-H,LQ(SMOSFET N-CH 30V 9A 8TSON |
0 |
|
Datasheet |
U-MOSVII-H | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta) | 4.5V, 10V | 25mOhm @ 4.5A, 10V | 2.3V @ 100µA | 9.5 nC @ 10 V | ±20V | 690 pF @ 10 V | - | 700mW (Ta), 15W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-TSON Advance (3.1x3.1) |
|
AOT2918LMOSFET N-CH 100V 13A/90A TO220 |
0 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 13A (Ta), 90A (Tc) | 10V | 7mOhm @ 20A, 10V | 3.9V @ 250µA | 53 nC @ 10 V | ±20V | 3430 pF @ 50 V | - | 2.1W (Ta), 267W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|

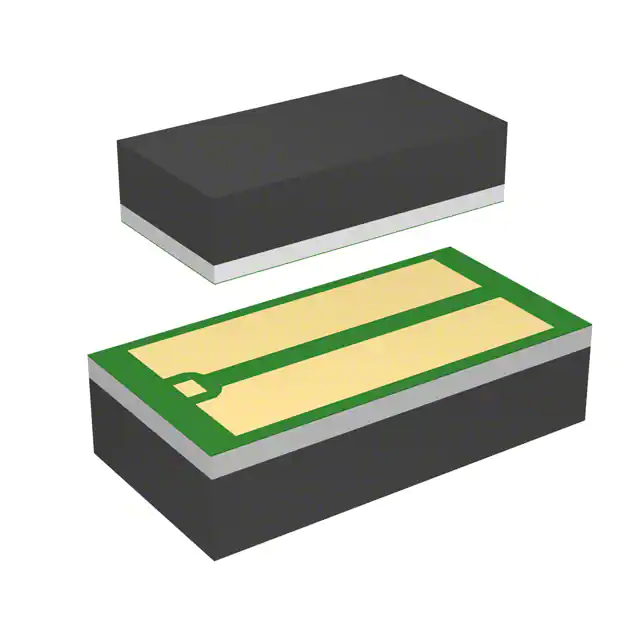

PI5101-01-LGIZMOSFET N-CH 5V 60A 3LGA |
0 |
|
Datasheet |
Picor® µRDS(on)FET® | 3-FLGA | Tray | Obsolete | N-Channel | MOSFET (Metal Oxide) | 5 V | 60A (Ta) | 3.5V, 4.5V | 0.45mOhm @ 60A, 4.5V | 800mV @ 1mA | 65 nC @ 4.5 V | ±5V | 7600 pF @ 5 V | - | 3.1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 3-LGA (4.1x8) |
|
PMN25UN,115MOSFET N-CH 20V 6A 6TSOP |
0 |
|
Datasheet |
- | SC-74, SOT-457 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 6A (Ta) | 1.8V, 4.5V | 27mOhm @ 6A, 4.5V | 1V @ 250µA | 10 nC @ 4.5 V | ±8V | 470 pF @ 10 V | - | 530mW (Ta), 6.25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-74 |
|
PMR290UNE,115MOSFET N-CH 20V 700MA SC75 |
0 |
|
- |
- | SC-75, SOT-416 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 700mA (Ta) | 1.8V, 4.5V | 380mOhm @ 500mA, 4.5V | 950mV @ 250µA | 0.68 nC @ 4.5 V | ±8V | 83 pF @ 10 V | - | 250mW (Ta), 770mW (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-75 |
|
PMT21EN,135MOSFET N-CH 30V 7.4A SOT223 |
0 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 7.4A (Ta) | 4.5V, 10V | 21mOhm @ 7.4A, 10V | 2.5V @ 250µA | 14.4 nC @ 10 V | ±20V | 588 pF @ 15 V | - | 820mW (Ta), 8.33W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-73 |
|
|
PMT29EN,115MOSFET N-CH 30V 6A SOT223 |
0 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 6A (Ta) | 4.5V, 10V | 29mOhm @ 6A, 10V | 2.5V @ 250µA | 11 nC @ 10 V | ±20V | 492 pF @ 15 V | - | 820mW (Ta), 8.33W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-73 |
|
|
PMT29EN,135MOSFET N-CH 30V 6A SOT223 |
0 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 6A (Ta) | 4.5V, 10V | 29mOhm @ 6A, 10V | 2.5V @ 250µA | 11 nC @ 10 V | ±20V | 492 pF @ 15 V | - | 820mW (Ta), 8.33W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-73 |
|
PMV28UN,215MOSFET N-CH 20V 3.3A TO236AB |
0 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 3.3A (Ta) | 1.8V, 4.5V | 32mOhm @ 3.3A, 4.5V | 1V @ 270µA | 9 nC @ 4.5 V | ±8V | 470 pF @ 10 V | - | 380mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 (TO-236AB) |
|
|
PMV30XN,215MOSFET N-CH 20V 3.2A TO236AB |
0 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 3.2A (Ta) | 2.5V, 4.5V | 35mOhm @ 3.2A, 4.5V | 1.5V @ 250µA | 7.4 nC @ 4.5 V | ±12V | 420 pF @ 15 V | - | 380mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 (TO-236AB) |
|
|
PMV37EN,215MOSFET N-CH 30V 3.1A TO236AB |
0 |
|
- |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 3.1A (Ta) | 4.5V, 10V | 36mOhm @ 3.1A, 10V | 2.5V @ 250µA | 10 nC @ 10 V | ±20V | 330 pF @ 10 V | - | 380mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 (TO-236AB) |
|
PSMN010-25YLC,115MOSFET N-CH 25V 39A LFPAK56 |
0 |
|
- |
- | SC-100, SOT-669 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 39A (Tc) | 4.5V, 10V | 10.6mOhm @ 10A, 10V | 1.95V @ 1mA | 11 nC @ 10 V | ±20V | 678 pF @ 12 V | - | 30W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
|
PSMN012-25YLC,115MOSFET N-CH 25V 33A LFPAK56 |
0 |
|
Datasheet |
- | SC-100, SOT-669 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 33A (Tc) | 4.5V, 10V | 12.6mOhm @ 10A, 10V | 1.95V @ 1mA | 8.3 nC @ 10 V | ±20V | 528 pF @ 12 V | - | 26W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
PSMN013-100XS,127MOSFET N-CH 100V 35.2A TO220F |
0 |
|
Datasheet |
- | TO-220-3 Full Pack, Isolated Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 35.2A (Tc) | 10V | 13.9mOhm @ 10A, 10V | 4V @ 1mA | 57.5 nC @ 10 V | ±20V | 3195 pF @ 50 V | - | 48.4W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220F |
|
|
PSMN016-100XS,127MOSFET N-CH 100V 32.1A TO220F |
0 |
|
- |
- | TO-220-3 Full Pack, Isolated Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 32.1A (Tc) | 10V | 16mOhm @ 10A, 10V | 4V @ 1mA | 46.2 nC @ 10 V | ±20V | 2404 pF @ 50 V | - | 46.1W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220F |
|
|
PSMN027-100XS,127MOSFET N-CH 100V 23.4A TO220F |
0 |
|
Datasheet |
- | TO-220-3 Full Pack, Isolated Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 23.4A (Tc) | 10V | 26.8mOhm @ 5A, 10V | 4V @ 250µA | 30 nC @ 10 V | ±20V | 1624 pF @ 50 V | - | 41.1W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220F |
|
|
PSMN5R0-100XS,127MOSFET N-CH 100V 67.5A TO220F |
0 |
|
- |
- | TO-220-3 Full Pack, Isolated Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 67.5A (Tc) | 10V | 5mOhm @ 15A, 10V | 4V @ 1mA | 153 nC @ 10 V | ±20V | 9900 pF @ 50 V | - | 63.8W (Tc) | - | - | - | Through Hole | TO-220F |
|
|
PSMN5R6-100XS,127MOSFET N-CH 100V 61.8A TO220F |
0 |
|
- |
- | TO-220-3 Full Pack, Isolated Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 61.8A (Tc) | 10V | 5.6mOhm @ 15A, 10V | 4V @ 1mA | 145 nC @ 10 V | ±20V | 8061 pF @ 50 V | - | 60W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220F |
