FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPC6011(TE85L,F,M)MOSFET N-CH 30V 6A VS-6 |
0 |
|
Datasheet |
U-MOSIV | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 6A (Ta) | 4.5V, 10V | 20mOhm @ 3A, 10V | 2.5V @ 1mA | 14 nC @ 10 V | ±20V | 640 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | - | - | Surface Mount | VS-6 (2.9x2.8) |
|
|
TPC6012(TE85L,F,M)MOSFET N-CH 20V 6A VS-6 |
0 |
|
Datasheet |
U-MOSIV | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 6A (Ta) | 2.5V, 4.5V | 20mOhm @ 3A, 4.5V | 1.2V @ 200µA | 9 nC @ 5 V | ±12V | 630 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | - | - | Surface Mount | VS-6 (2.9x2.8) |
|
|
TPC6110(TE85L,F,M)MOSFET P-CH 30V 4.5A VS-6 |
0 |
|
Datasheet |
U-MOSVI | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 4.5A (Ta) | - | 56mOhm @ 2.2A, 10V | 2V @ 100µA | 14 nC @ 10 V | - | 510 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | - | - | Surface Mount | VS-6 (2.9x2.8) |
|
|
TPC6113(TE85L,F,M)MOSFET P-CH 20V 5A VS-6 |
0 |
|
Datasheet |
U-MOSVI | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 5A (Ta) | 2.5V, 4.5V | 55mOhm @ 2.5A, 4.5V | 1.2V @ 200µA | 10 nC @ 5 V | ±12V | 690 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | - | - | Surface Mount | VS-6 (2.9x2.8) |
|

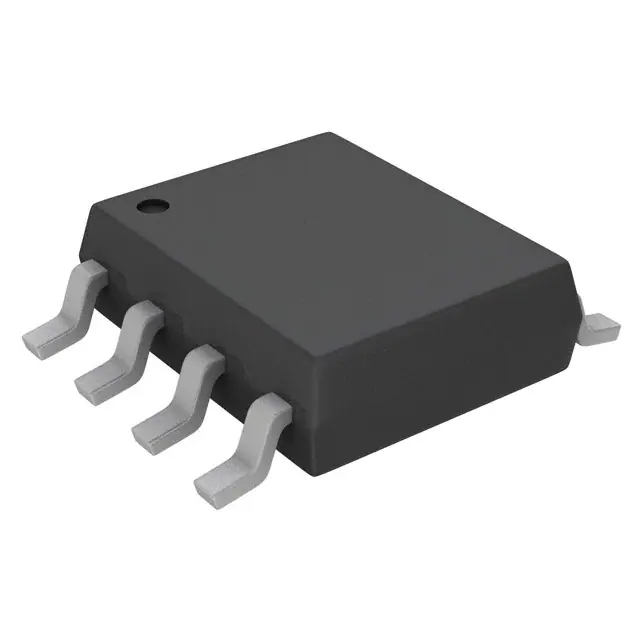

TPC8062-H,LQ(CMMOSFET N-CH 30V 18A 8SOP |
0 |
|
Datasheet |
U-MOSVII-H | 8-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 18A (Ta) | 4.5V, 10V | 5.8mOhm @ 9A, 10V | 2.3V @ 300µA | 34 nC @ 10 V | ±20V | 2900 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
TPC8065-H,LQ(SMOSFET N-CH 30V 13A 8SOP |
0 |
|
Datasheet |
U-MOSVII-H | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 13A (Ta) | 4.5V, 10V | 11.6mOhm @ 6.5A, 10V | 2.3V @ 200µA | 20 nC @ 10 V | ±20V | 1350 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
TPC8066-H,LQ(SMOSFET N-CH 30V 11A 8SOP |
0 |
|
Datasheet |
U-MOSVII-H | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4.5V, 10V | 16mOhm @ 5.5A, 10V | 2.3V @ 100µA | 15 nC @ 10 V | ±20V | 1100 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
TPC8067-H,LQ(SMOSFET N-CH 30V 9A 8SOP |
0 |
|
Datasheet |
U-MOSVII-H | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta) | 4.5V, 10V | 25mOhm @ 4.5A, 10V | 2.3V @ 100µA | 9.5 nC @ 10 V | ±20V | 690 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
TPC8092,LQ(SMOSFET N-CH 30V 15A 8SOP |
0 |
|
Datasheet |
U-MOSVII | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 15A (Ta) | 4.5V, 10V | 9mOhm @ 7.5A, 10V | 2.3V @ 200µA | 25 nC @ 10 V | ±20V | 1800 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
TPC8126,LQ(CMMOSFET P-CH 30V 11A 8SOP |
0 |
|
Datasheet |
U-MOSVI | 8-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4.5V, 10V | 10mOhm @ 5.5A, 10V | 2V @ 500µA | 56 nC @ 10 V | +20V, -25V | 2400 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP (5.5x6.0) |
|
|
TPC8A05-H(TE12L,QMMOSFET N-CH 30V 10A 8SOP |
0 |
|
Datasheet |
U-MOSV-H | 8-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Ta) | 4.5V, 10V | 13.3mOhm @ 5A, 10V | 2.3V @ 1mA | 15 nC @ 10 V | ±20V | 1700 pF @ 10 V | Schottky Diode (Body) | 1W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP (5.5x6.0) |
|
TPCA8055-H,LQ(MMOSFET N-CH 30V 56A 8SOP |
0 |
|
Datasheet |
U-MOSVII-H | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 56A (Ta) | 4.5V, 10V | 1.9mOhm @ 28A, 10V | 2.3V @ 1mA | 91 nC @ 10 V | ±20V | 7700 pF @ 10 V | - | 1.6W (Ta), 70W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
|
TPCA8056-H,LQ(MMOSFET N-CH 30V 48A 8SOP |
0 |
|
Datasheet |
U-MOSVII-H | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 48A (Ta) | 4.5V, 10V | 2.2mOhm @ 24A, 10V | 2.3V @ 1mA | 74 nC @ 10 V | ±20V | 6200 pF @ 10 V | - | 1.6W (Ta), 63W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
|
TPCA8057-H,LQ(MMOSFET N-CH 30V 42A 8SOP |
0 |
|
Datasheet |
U-MOSVII-H | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 42A (Ta) | 4.5V, 10V | 2.6mOhm @ 21A, 10V | 2.3V @ 500µA | 61 nC @ 10 V | ±20V | 5200 pF @ 10 V | - | 1.6W (Ta), 57W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
|
TPCA8062-H,LQ(CMMOSFET N-CH 30V 28A 8SOP |
0 |
|
Datasheet |
U-MOSVII-H | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 28A (Ta) | 4.5V, 10V | 5.6mOhm @ 14A, 10V | 2.3V @ 300µA | 34 nC @ 10 V | ±20V | 2900 pF @ 10 V | - | 1.6W (Ta), 42W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
|
TPCA8064-H,LQ(CMMOSFET N-CH 30V 20A 8SOP |
0 |
|
Datasheet |
U-MOSVII-H | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 20A (Ta) | 4.5V, 10V | 8.2mOhm @ 10A, 10V | 2.3V @ 200µA | 23 nC @ 10 V | ±20V | 1900 pF @ 10 V | - | 1.6W (Ta), 32W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
|
TPCA8065-H,LQ(SMOSFET N-CH 30V 16A 8SOP |
0 |
|
Datasheet |
U-MOSVII-H | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta) | 4.5V, 10V | 11.4mOhm @ 8A, 10V | 2.3V @ 200µA | 20 nC @ 10 V | ±20V | 1600 pF @ 10 V | - | 1.6W (Ta), 25W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
|
TPCA8120,LQ(CMMOSFET P-CH 30V 45A 8SOP |
0 |
|
Datasheet |
U-MOSVI | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 45A (Ta) | 4.5V, 10V | 3mOhm @ 22.5A, 10V | 2V @ 1mA | 190 nC @ 10 V | +20V, -25V | 7420 pF @ 10 V | - | 1.6W (Ta), 45W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
|
TPCA8128,LQ(CMMOSFET P-CH 30V 34A 8SOP |
0 |
|
Datasheet |
U-MOSVI | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 34A (Ta) | 4.5V, 10V | 4.8mOhm @ 17A, 10V | 2V @ 500µA | 115 nC @ 10 V | +20V, -25V | 4800 pF @ 10 V | - | 1.6W (Ta), 45W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
TPCC8009,LQ(OMOSFET N-CH 30V 24A 8TSON |
0 |
|
Datasheet |
U-MOSIV | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 24A (Ta) | - | 7mOhm @ 12A, 10V | 3V @ 200µA | 26 nC @ 10 V | - | 1270 pF @ 10 V | - | - | 150°C (TJ) | - | - | Surface Mount | 8-TSON Advance (3.1x3.1) |
