Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEF-CS1E150RCAP ALUM POLY 15UF 20% 25V SMD |
5,664 |
|
Datasheet |
SP-Cap CS | Tape & Reel (TR) | Not For New Designs | Polymer | 15 µF | ±20% | 25 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.047" (1.20mm) | - | Surface Mount |
|
SVF1JM560GCRE00RS302CAP ALUM POLY 56UF 20% 63V SMD |
10,000 |
|
Datasheet |
VF | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
UGS1C182MP51016SUCAP ALUM POLY 1800UF 20% 16V TH |
797 |
|
Datasheet |
UGS | Cut Tape (CT) | Active | Polymer | 1800 µF | ±20% | 16 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole |
|

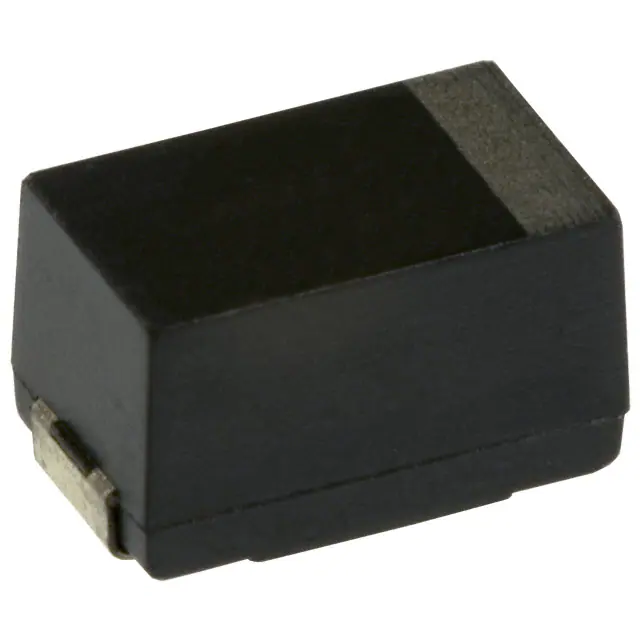

EEF-SE0D561RCAP ALUM POLY 560UF 20% 2V SMD |
282 |
|
- |
SP-Cap SE | Tape & Reel (TR) | Obsolete | Polymer | 560 µF | ±20% | 2 V | 5mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
PVH-25V220MG70E-R2CAP ALUM POLY 22UF 20% 25V SMD |
2,000 |
|
- |
PVH | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | ±20% | 25 V | 50mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount |
|
|
PVH-20V390MG70E-R2CAP ALUM POLY 39UF 20% 20V SMD |
1,937 |
|
- |
PVH | Tape & Reel (TR) | Obsolete | Polymer | 39 µF | ±20% | 20 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount |
|
|
PVH-20V470MG70E-R2CAP ALUM POLY 47UF 20% 20V SMD |
895 |
|
- |
PVH | Tape & Reel (TR) | Obsolete | Polymer | 47 µF | ±20% | 20 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount |
|
PCJ1C181MCL1GSCAP ALUM POLY 180UF 20% 16V SMD |
425 |
|
Datasheet |
PCJ | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 16 V | 18mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.89 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
A700W227M002ATE006CAP ALUM POLY 220UF 20% 2V SMD |
994 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 2 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.9 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.059" (1.50mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
PLG1A122MDO1TDCAP ALUM POLY 1200UF 20% 10V TH |
989 |
|
Datasheet |
PLG | Cut Tape (CT) | Active | Polymer | 1200 µF | ±20% | 10 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.2 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
EEF-SE0E471RCAP ALUM POLY 470UF 20% 2.5V SMD |
775 |
|
- |
SP-Cap SE | Tape & Reel (TR) | Obsolete | Polymer | 470 µF | ±20% | 2.5 V | 5mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
ECASD40G157M016K00CAP ALUM POLY 150UF 20% 4V SMD |
1,518 |
|
Datasheet |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 4 V | 16mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ECASD40D157M009K00CAP ALUM POLY 150UF 20% 2V SMD |
2,946 |
|
Datasheet |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 2 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

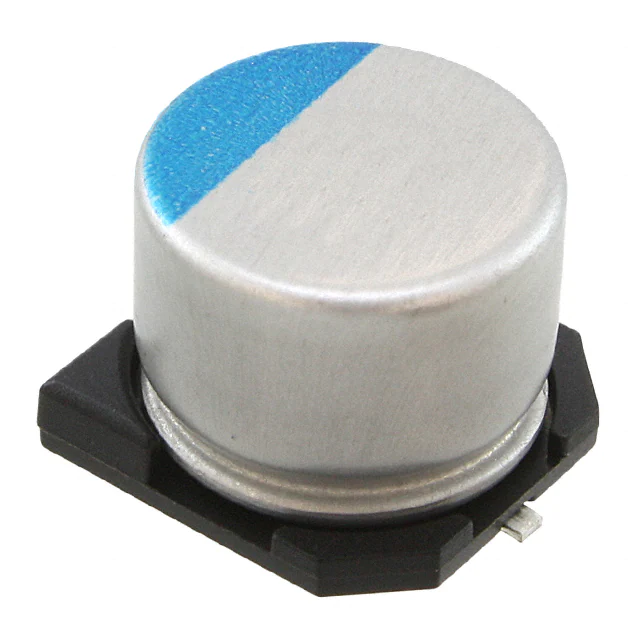

PVH-10V271MH80E-R2CAP ALUM POLY 270UF 20% 10V SMD |
1,990 |
|
- |
PVH | Tape & Reel (TR) | Obsolete | Polymer | 270 µF | ±20% | 10 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.77 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount |
|
|
ECASD40J476M025K00CAP ALUM POLY 47UF 20% 6.3V SMD |
535 |
|
Datasheet |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 47 µF | ±20% | 6.3 V | 25mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1.8 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
PVH-10V331MH80E-R2CAP ALUM POLY 330UF 20% 10V SMD |
283 |
|
- |
PVH | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 10 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.77 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount |
|
|
SVZ0JM272GCRE00REX12CAP ALUM POLY 2700UF 20% 6.3V |
9,827 |
|
Datasheet |
VZ | Tape & Reel (TR) | Active | Polymer | 2700 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
ECASD41E226M040KA0CAP ALUM POLY 22UF 20% 25V SMD |
1,185 |
|
Datasheet |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | ±20% | 25 V | 40mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ECASD60G227M010K00CAP ALUM POLY 220UF 20% 4V SMD |
30,517 |
|
Datasheet |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 4 V | 10mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
PLV1E121MCL1CAP ALUM POLY 120UF 20% 25V TH |
400 |
|
Datasheet |
PLV | Bulk | Obsolete | Polymer | 120 µF | ±20% | 25 V | 28mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
