Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APXH160ARA390MF60GCAP ALUM POLY 39UF 20% 16V SMD |
375 |
|
Datasheet |
NPCAP™-PXH | Tape & Reel (TR) | Obsolete | Polymer | 39 µF | ±20% | 16 V | 50mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2.05 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
APXH200ARA220MF60GCAP ALUM POLY 22UF 20% 20V SMD |
305 |
|
Datasheet |
NPCAP™-PXH | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | ±20% | 20 V | 60mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 1.65 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
VSE1C271MCB6309ERCAP ALUM POLY 270UF 20% 16V SMD |
166 |
|
Datasheet |
VSE | Cut Tape (CT) | Active | Polymer | 270 µF | ±20% | 16 V | 9mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.8 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.374" (9.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
ECASD40D107M016K00CAP ALUM POLY 100UF 20% 2V SMD |
12,150 |
|
Datasheet |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 2 V | 16mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
PVH-25V100MF60E-R2CAP ALUM POLY 10UF 20% 25V SMD |
810 |
|
- |
PVH | Tape & Reel (TR) | Obsolete | Polymer | 10 µF | ±20% | 25 V | 65mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
PVH-16V330MF60E-R2CAP ALUM POLY 33UF 20% 16V SMD |
251 |
|
- |
PVH | Tape & Reel (TR) | Obsolete | Polymer | 33 µF | ±20% | 16 V | 37mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.05 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
UPC0J331MP25508CAP ALUM POLY 330UF 20% 6.3V TH |
2,200 |
|
Datasheet |
UPC | Tape & Box (TB) | Active | Polymer | 330 µF | ±20% | 6.3 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.05 A @ 100 kHz | - | 0.098" (2.50mm) | 0.216" Dia (5.50mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
UGP1C101MP26308CAP ALUM POLY 100UF 20% 16V TH |
2,000 |
|
Datasheet |
UGP | Tape & Box (TB) | Active | Polymer | 100 µF | ±20% | 16 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.49 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
PVH-16V390MF60E-R2CAP ALUM POLY 39UF 20% 16V SMD |
941 |
|
- |
PVH | Tape & Reel (TR) | Obsolete | Polymer | 39 µF | ±20% | 16 V | 37mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.05 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|

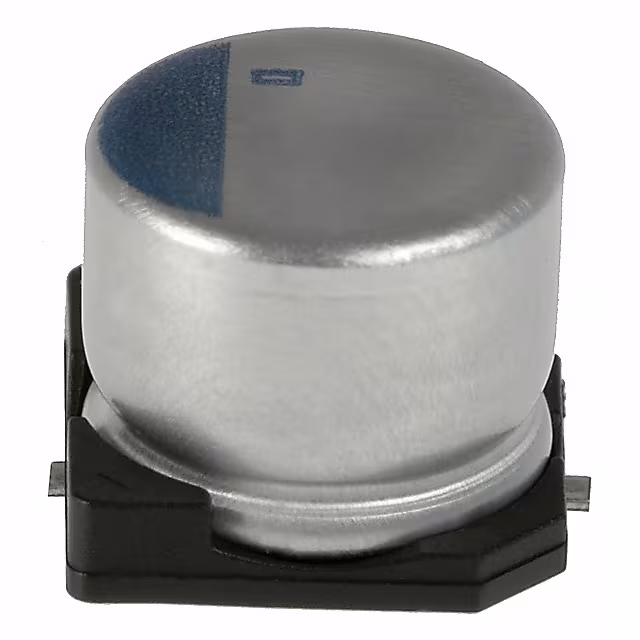

APXC100ARA151MH70GCAP ALUM POLY 150UF 20% 10V SMD |
1,205 |
|
Datasheet |
NPCAP™-PXC | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 10 V | 20mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.16 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
A700X127M010ATE015CAP ALUM POLY 120UF 20% 10V SMD |
500 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 10 V | 15mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
SA10BM331A19R09XXXCAP ALUM POLY 330UF 20% 2V SMD |
10,454 |
|
- |
A1 | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Surface Mount |
|
A765MU157M1ELAE050CAP ALUM POLY 150UF 20% 25V SMD |
0 |
|
Datasheet |
A765 | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 25 V | 50mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 190 mA @ 120 Hz | 3.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.508" (12.90mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
UPE1E821MP51012UCAP ALUM POLY 820UF 20% 25V TH |
567 |
|
Datasheet |
UPE | Cut Tape (CT) | Active | Polymer | 820 µF | ±20% | 25 V | 20mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole |
|
PCK0E561MCO1GSCAP ALUM POLY 560UF 20% 2.5V SMD |
1,998 |
|
Datasheet |
PCK | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

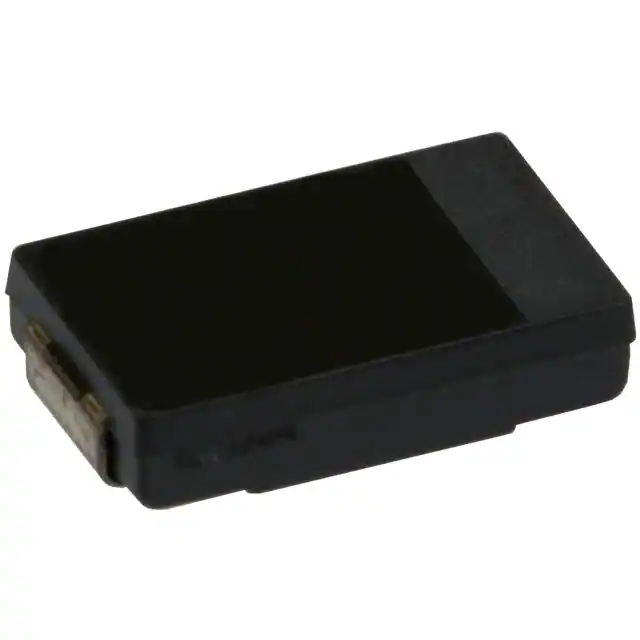

EEF-SL0E151RCAP ALUM POLY 150UF 20% 2.5V SMD |
1,290 |
|
Datasheet |
SP-Cap SL | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 2.5 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
UGS1E821MP30821SUCAP ALUM POLY 820UF 20% 25V TH |
1,091 |
|
Datasheet |
UGS | Cut Tape (CT) | Active | Polymer | 820 µF | ±20% | 25 V | 16mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.886" (22.50mm) | - | Through Hole |
|
|
UPE1D471KP30811UCAP ALUM POLY 470UF 10% 20V TH |
772 |
|
Datasheet |
UPE | Cut Tape (CT) | Active | Polymer | 470 µF | ±10% | 20 V | 14mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.97 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole |
|
|
VHRE1351E471MVCGCAP ALUMHYB 470UF 20% 25V SMD |
134 |
|
Datasheet |
VHR | Bulk | Active | Hybrid | 470 µF | ±20% | 25 V | 25mOhm | 2000 Hrs @ 150°C | -55°C ~ 150°C | - | General Purpose | - | 108 mA @ 120 Hz | 900 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
4SVPC150MYCAP ALUM POLY 150UF 20% 4V SMD |
1,441 |
|
Datasheet |
OS-CON™, SVPC | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 4 V | 23mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 112 mA @ 120 Hz | 2.24 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
