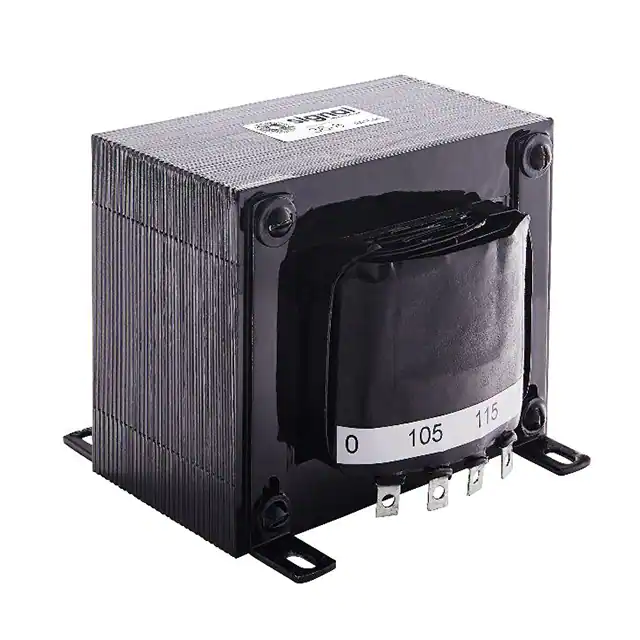

Signal Transformer 36-25

Part No.:
36-25
Manufacturer:
Signal Transformer
Category:
Power Transformers
Package:
Datasheet:
IC Supply Hub36-25.pdf
Description:
PWR XFMR LAMINATED 900VA CHAS MT
Quantity:
Payment:
Payment
Shipping:
Shipping

Inventory:0

Please send an inquiry. Send us your inquiry, and we will respond immediately.

Part Number
Quantity
Price
Name
Company
Email
Comments
  • Specifications
  • FAQ
  • Product Comparison
  • Tags
Product attributes
Attribute value
Manufacturer:
Signal Transformer
Series:
-
Packaging:
Box
Product Status:
Active
Type:
Laminated Core
Voltage - Primary:
105V, 115V, 125V
Voltage - Secondary (Full Load):
Parallel 18V, Series 36V
Current - Output (Max):
Parallel 50A, Series 25A
Primary Winding(s):
Single, Multiple Taps
Secondary Winding(s):
Dual
Center Tap:
Yes
Power - Max:
900VA
Mounting Type:
Chassis Mount
Termination Style:
Solder, Quick Connect
Size / Dimension:
162.00mm L x 146.10mm W
Height - Seated (Max):
134.90mm
Voltage - Isolation:
1500Vrms
Weight:
27 lbs (12.2 kg)
