Omron Electronics Inc-EMC Div G7L-2A-P-CB AC12

Part No.:
G7L-2A-P-CB AC12
Manufacturer:
Omron Electronics Inc-EMC Div
Category:
Power Relays, Over 2 Amps
Package:
Datasheet:
IC Supply HubG7L-2A-P-CB AC12.pdf
Description:
RELAY GEN PURPOSE DPST 20A 12V
Quantity:
Payment:
Payment
Shipping:
Shipping

Inventory:0

Please send an inquiry. Send us your inquiry, and we will respond immediately.

Part Number
Quantity
Price
Name
Company
Email
Comments
  • Specifications
  • FAQ
  • Product Comparison
  • Tags
Product attributes
Attribute value
Manufacturer:
Omron Electronics Inc-EMC Div
Series:
G7L
Packaging:
Bulk
Product Status:
Active
Mounting Type:
Through Hole
Coil Voltage:
12VAC
Contact Form:
DPST-NO (2 Form A)
Contact Rating (Current):
20 A
Switching Voltage:
250VAC - Max
Load - Max Switching:
5000VA
Coil Current:
142 mA
Coil Type:
Non Latching
Features:
-
Termination Style:
PC Pin
Seal Rating:
-
Coil Insulation:
Class B
Must Operate Voltage:
9 VAC
Must Release Voltage:
1.8 VAC
Operate Time:
30 ms
Release Time:
30 ms
Operating Temperature:
-25°C ~ 60°C
Contact Material:
Silver Alloy
Relay Type:
General Purpose
Grade:
-
Qualification:
-

1. How to order G7L-2A-P-CB AC12 on IC Supply Hub?

Currently, IC Supply Hub only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does IC Supply Hub guarantee that G7L-2A-P-CB AC12 is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the G7L-2A-P-CB AC12. All suppliers must pass our qualification reviews before they can publish their products including G7L-2A-P-CB AC12 on IC Supply Hub; we pay more attention to the channels and quality of G7L-2A-P-CB AC12 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the G7L-2A-P-CB AC12 price and inventory displayed accurate?

The price and inventory of G7L-2A-P-CB AC12 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of G7L-2A-P-CB AC12?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the G7L-2A-P-CB AC12 we delivered, we will accept the replacement or return of the G7L-2A-P-CB AC12 only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of G7L-2A-P-CB AC12.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations

7.How to contact us to get technical supports, such as G7L-2A-P-CB AC12 pin diagram, G7L-2A-P-CB AC12 datasheet?

If you need any after-sales service, please do not hesitate to contact us.

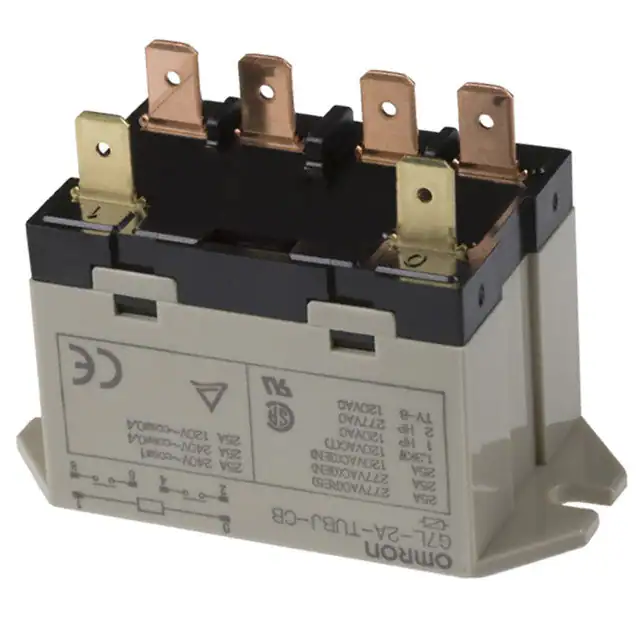

Image G7L-1A-TUB-CB-AC100/120 G7L-2A-TUB-J-CB-AC24 G7L-2A-TUB-J-CB-AC200/240 G7L-2A-TUB-J-CB DC24 G7L-2A-TUB-J-CB-AC100/120
Part Number G7L-1A-TUB-CB-AC100/120 G7L-2A-TUB-J-CB-AC24 G7L-2A-TUB-J-CB-AC200/240 G7L-2A-TUB-J-CB DC24 G7L-2A-TUB-J-CB-AC100/120
Manufacturer Omron Electronics Inc-EMC Div Omron Electronics Inc-EMC Div Omron Electronics Inc-EMC Div Omron Electronics Inc-EMC Div Omron Electronics Inc-EMC Div
Series G7L G7L G7L G7L G7L
Packaging Bulk Bulk Bulk Bulk Bulk
Product Status Active Active Active Active Active
Mounting Type Chassis Mount Chassis Mount Chassis Mount Chassis Mount Chassis Mount
Coil Voltage 120VAC 24VAC 240VAC 24VDC 120VAC
Contact Form SPST-NO (1 Form A) DPST-NO (2 Form A) DPST-NO (2 Form A) DPST-NO (2 Form A) DPST-NO (2 Form A)
Contact Rating (Current) 30 A 25 A 25 A 25 A 25 A
Switching Voltage 250VAC - Max 250VAC - Max 250VAC - Max 250VAC - Max 250VAC - Max
Load - Max Switching 7500VA 6250VA 6250VA 6250VA 6250VA
Coil Current 20.4 mA 71 mA 10.2 mA 79 mA 20.4 mA
Coil Type Non Latching Non Latching Non Latching Non Latching Non Latching
Features - Test Button Test Button Test Button Test Button
Termination Style Quick Connect - 0.250" (6.3mm) Quick Connect - 0.250" (6.3mm) Quick Connect - 0.250" (6.3mm) Quick Connect - 0.250" (6.3mm) Quick Connect - 0.250" (6.3mm)
Seal Rating - - - - -
Coil Insulation Class B Class B Class B Class B Class B
Must Operate Voltage 75 VAC 18 VAC 150 VAC 18 VDC 75 VAC
Must Release Voltage 18 VAC 3.6 VAC 36 VAC 3.6 VDC 18 VAC
Operate Time 30 ms 30 ms 30 ms 30 ms 30 ms
Release Time 30 ms 30 ms 30 ms 30 ms 30 ms
Operating Temperature -25°C ~ 60°C -25°C ~ 60°C -25°C ~ 60°C -25°C ~ 60°C -25°C ~ 60°C
Contact Material Silver Alloy Silver Alloy Silver Alloy Silver Alloy Silver Alloy
Relay Type General Purpose General Purpose General Purpose General Purpose General Purpose
Grade - - - - -
Qualification - - - - -
