Ai-Thinker RA-01SH

Part No.:
RA-01SH
Manufacturer:
Ai-Thinker
Category:
RF Transceiver Modules and Modems
Package:
16-SMD Module
Datasheet:
IC Supply HubRA-01SH.pdf
Description:
RF TXRX MOD ISM<1GHZIPEX SMD
Quantity:
Payment:
Payment
Shipping:
Shipping

Inventory:0

Please send an inquiry. Send us your inquiry, and we will respond immediately.

Part Number
Quantity
Price
Name
Company
Email
Comments
  • Specifications
  • FAQ
  • Product Comparison
  • Tags
Product attributes
Attribute value
Manufacturer:
Ai-Thinker
Series:
-
Package/Case:
16-SMD Module
Packaging:
Product Status:
Active
Programmable:
Not Verified
RF Family/Standard:
General ISM < 1GHz
Protocol:
LoRa™
Modulation:
FSK, GFSK, GMSK, MSK, OOK
Frequency:
803MHz ~ 930MHz
Data Rate:
300kbps
Power - Output:
22dBm
Sensitivity:
-140dBm
Serial Interfaces:
SPI
Antenna Type:
Antenna Not Included, I-PEX
Utilized IC / Part:
SX1262
Memory Size:
-
Voltage - Supply:
2.7V ~ 3.6V
Current - Receiving:
4.2mA
Current - Transmitting:
-
Mounting Type:
Surface Mount
Operating Temperature:
-40°C ~ 85°C

1. How to order RA-01SH on IC Supply Hub?

Currently, IC Supply Hub only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does IC Supply Hub guarantee that RA-01SH is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the RA-01SH. All suppliers must pass our qualification reviews before they can publish their products including RA-01SH on IC Supply Hub; we pay more attention to the channels and quality of RA-01SH products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the RA-01SH price and inventory displayed accurate?

The price and inventory of RA-01SH fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of RA-01SH?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the RA-01SH we delivered, we will accept the replacement or return of the RA-01SH only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of RA-01SH.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations

7.How to contact us to get technical supports, such as RA-01SH pin diagram, RA-01SH datasheet?

If you need any after-sales service, please do not hesitate to contact us.

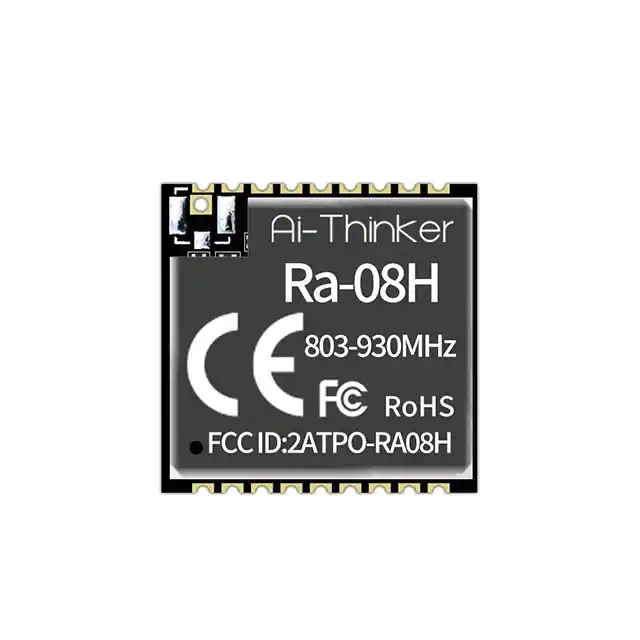

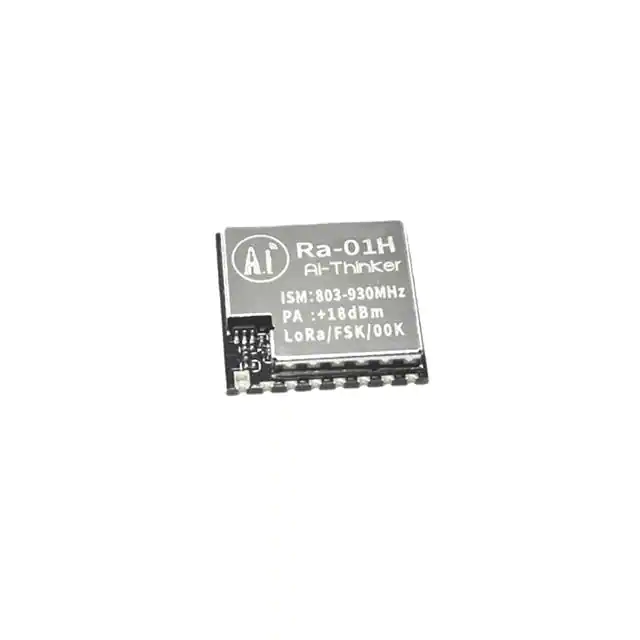

Image RA-08H-915 RA-01 RA-08 RA-08H RA-01H
Part Number RA-08H-915 RA-01 RA-08 RA-08H RA-01H
Manufacturer Ai-Thinker Ai-Thinker Ai-Thinker Ai-Thinker Ai-Thinker
Series * - - - -
Package/Case - 16-SMD Module 18-SMD Module 18-SMD Module 16-SMD Module
Packaging Tape & Reel (TR) Cut Tape (CT) Cut Tape (CT) Cut Tape (CT) Cut Tape (CT)
Product Status Active Active Active Active Active
Programmable Not Verified Not Verified Not Verified Not Verified Not Verified
RF Family/Standard - General ISM < 1GHz General ISM < 1GHz General ISM < 1GHz General ISM < 1GHz
Protocol - LoRa™ LoRa™ LoRa™ LoRa™
Modulation - FSK, GFSK, GMSK, MSK, OOK BPSK, FSK, GFSK, GMSK, MSK BPSK, FSK, GFSK, GMSK, MSK FSK, GFSK, GMSK, MSK, OOK
Frequency - 410MHz ~ 525MHz 410MHz ~ 525MHz 410MHz ~ 525MHz 803MHz ~ 930MHz
Data Rate - 300kbps - - 300kbps
Power - Output - 18dBm 21dBm 21dBm 19dBm
Sensitivity - -141dBm -138dBm -138dBm -140dBm
Serial Interfaces - SPI ADC, GPIO, I2C, I2S, PWM, SPI, UART ADC, GPIO, I2C, I2S, PWM, SPI, UART SPI
Antenna Type - Antenna Not Included Antenna Not Included, I-PEX Antenna Not Included, I-PEX Antenna Not Included
Utilized IC / Part - - - - SX1276
Memory Size - - 128kB Flash, 16kB SRAM 128kB Flash, 16kB SRAM -
Voltage - Supply - 2.5V ~ 3.7V 2.7V ~ 3.6V 2.7V ~ 3.6V 2.7V ~ 3.6V
Current - Receiving - 12.15mA 9.5mA 9.5mA 12.15mA
Current - Transmitting - 93mA ~ 97mA 115mA 115mA -
Mounting Type - Surface Mount Surface Mount Surface Mount Surface Mount
