Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

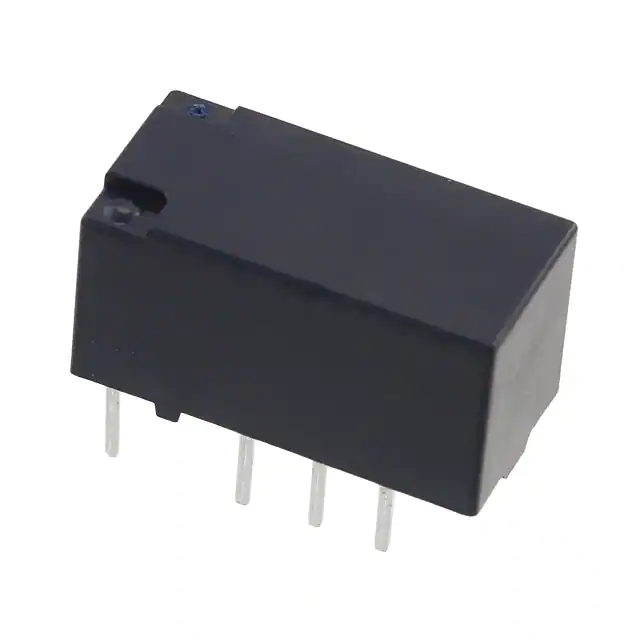

TXD2-L-24V-4RELAY GEN PURPOSE DPDT 10MA 24V |
0 |
|
Datasheet |
TX-D | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | - | 10.4 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 18 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
D3021RELAY TELECOM DPDT 2A 3V |
0 |
|
Datasheet |
FP2, AXICOM | Bulk | Obsolete | Through Hole | 3VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 26.7 mA | Non Latching | - | PC Pin | - | - | 2.1 VDC | 0.3 VDC | 4 ms | 3 ms | -40°C ~ 85°C | Palladium (Pd), Ruthenium (Ru), Gold (Au) | Telecom | - | - |
|
TX2SA-L-4.5V-ZRELAY TELECOM DPDT 2A 4.5V |
0 |
|
Datasheet |
TX | Tape & Reel (TR) | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 22.2 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 3.38 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
G5A-237P-DC6RELAY GENERAL PURPOSE DPDT 1A 6V |
0 |
|
Datasheet |
G5A | Tube | Obsolete | Through Hole | 6VDC | DPDT (2 Form C) | 1 A | 125VAC, 125VDC - Max | - | 33.3 mA | Non Latching | - | PC Pin | - | - | 4.2 VDC | 0.6 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G5A-237P-DC9RELAY GENERAL PURPOSE DPDT 1A 9V |
0 |
|
Datasheet |
G5A | Tube | Obsolete | Through Hole | 9VDC | DPDT (2 Form C) | 1 A | 125VAC, 125VDC - Max | - | 22.2 mA | Non Latching | - | PC Pin | - | - | 6.3 VDC | 0.9 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
AGN200A06ZRELAY TELECOM DPDT 1A 6V |
0 |
|
Datasheet |
AGN | Tape & Reel (TR) | Active | Surface Mount | 6VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 23.3 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
D3047RELAY TELECOM DPDT 2A 24V |
0 |
|
Datasheet |
FP2, AXICOM | Bulk | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 6.3 mA | Latching, Single Coil | - | PC Pin | - | - | 18 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Palladium (Pd), Ruthenium (Ru), Gold (Au) | Telecom | - | - |
|
TXD2SS-3V-6RELAY GENERAL PURPOSE DPDT 2A 3V |
0 |
|
Datasheet |
TX-D | Tube | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440W | 93.5 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TXD2SS-3V-7RELAY GEN PURPOSE DPDT 10MA 3V |
0 |
|
Datasheet |
TX-D | Tube | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | - | 93.5 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
G6AK-274P-ST-US DC48RELAY GEN PURPOSE DPDT 2A 48V |
0 |
|
Datasheet |
G6A | Tube | Active | Through Hole | 48VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 4.2 mA | Latching, Dual Coil | - | PC Pin | - | - | 33.6 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
DS1E-S-DC1.5VRELAY GEN PURPOSE SPDT 2A 1.5V |
0 |
|
Datasheet |
DS | Box | Active | Through Hole | 1.5VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 133 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 1.2 VDC | 0.15 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS1E-ML2-DC48VRELAY GEN PURPOSE SPDT 2A 48V |
1 |
|
Datasheet |
DS | Box | Active | Through Hole | 48VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 7.5 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 33.6 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
TXS2SA-L2-24V-ZRELAY GEN PURPOSE DPDT 1A 24V |
0 |
|
Datasheet |
TX-S | Tape & Reel (TR) | Active | Surface Mount | 24VDC | DPDT (2 Form C) | 1 A | 110VDC - Max | 110W | 6.3 mA | Latching, Dual Coil | - | Gull Wing | Sealed - Fully | - | 19.2 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS1E-S-DC12V-RRELAY GEN PURPOSE SPDT 2A 12V |
0 |
|
Datasheet |
DS | Box | Active | Through Hole | 12VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 16.7 mA | Non Latching | Reverse Polarity | PC Pin | Sealed - Fully | - | 9.6 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS1E-S-DC24V-RRELAY GEN PURPOSE SPDT 2A 24V |
0 |
|
Datasheet |
DS | Box | Active | Through Hole | 24VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 8.3 mA | Non Latching | Reverse Polarity | PC Pin | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G5A-234P-DC6RELAY GENERAL PURPOSE DPDT 1A 6V |
0 |
|
Datasheet |
G5A | Tube | Obsolete | Through Hole | 6VDC | DPDT (2 Form C) | 1 A | 125VAC, 125VDC - Max | - | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.2 VDC | 0.6 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G5A-234P DC9RELAY GENERAL PURPOSE DPDT 1A 9V |
0 |
|
Datasheet |
G5A | Tube | Obsolete | Through Hole | 9VDC | DPDT (2 Form C) | 1 A | 125VAC, 125VDC - Max | - | 22.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.3 VDC | 0.9 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G5A-234PL DC24RELAY GEN PURPOSE DPDT 1A 24V |
0 |
|
Datasheet |
G5A | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 125VDC - Max | - | 6.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
V23101D1006B201RELAY GEN PURPOSE SPDT 1.25A 12V |
0 |
|
Datasheet |
V23101, AXICOM | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 1.25 A | 125VAC, 120VDC - Max | 62.5VA, 30W | 37.5 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
DS1E-S-DC12V-TBRELAY GEN PURPOSE SPDT 2A 12V |
0 |
|
Datasheet |
DS | Tape & Box (TB) | Active | Through Hole | 12VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9.6 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
