Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7142-12-1111RELAY REED DPDT 250MA 12V Coto Technology |
0 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 250 mA | 150VAC, 150VDC - Max | 24.5 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
|
7142-24-1010RELAY REED DPDT 250MA 24V Coto Technology |
0 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 250 mA | 150VAC, 150VDC - Max | 15.5 mA | Non Latching | Electrostatic Shield | PC Pin | - | 18 VDC | 2 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
|
7143-05-1000RELAY REED 3PDT 250MA 5V Coto Technology |
0 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 5VDC | 3PDT (3 Form C) | 250 mA | 150VAC, 150VDC - Max | 90.9 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
|
7143-05-1010RELAY REED 3PDT 250MA 5V Coto Technology |
0 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 5VDC | 3PDT (3 Form C) | 250 mA | 150VAC, 150VDC - Max | 90.9 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.4 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
|
7143-12-1000RELAY REED 3PDT 250MA 12V Coto Technology |
0 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | 3PDT (3 Form C) | 250 mA | 150VAC, 150VDC - Max | 40 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
|
7143-12-1010RELAY REED 3PDT 250MA 12V Coto Technology |
0 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | 3PDT (3 Form C) | 250 mA | 150VAC, 150VDC - Max | 40 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
|
7143-24-1011RELAY REED 3PDT 250MA 24V Coto Technology |
0 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 24VDC | 3PDT (3 Form C) | 250 mA | 150VAC, 150VDC - Max | 17.8 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 18 VDC | 2 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
|
7150-05-1000RELAY REED SPST 500MA 5V Coto Technology |
0 |
|
Datasheet |
7000 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9.1 mA | Latching, Dual Coil | - | PC Pin | - | 3.75 VDC | - | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7150-05-1011RELAY REED SPST 500MA 5V Coto Technology |
0 |
|
Datasheet |
7000 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9.1 mA | Latching, Dual Coil | Diode, Electrostatic Shield | PC Pin | - | 3.75 VDC | - | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|

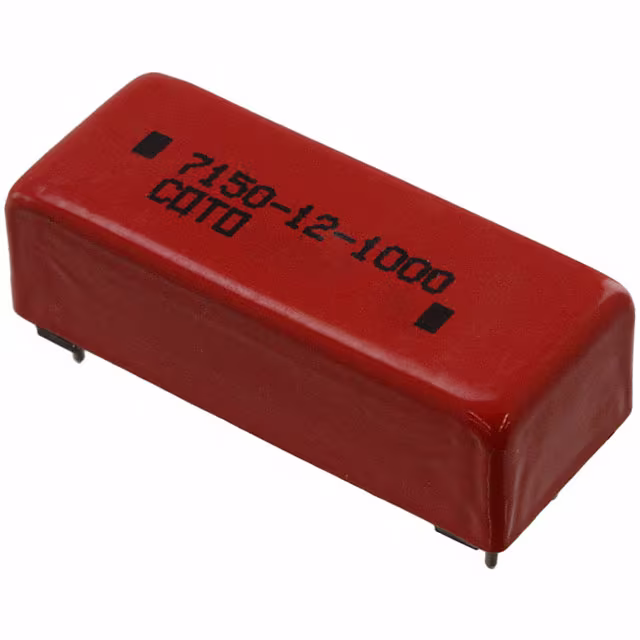

7150-12-1000RELAY REED SPST 500MA 12V Coto Technology |
0 |
|
Datasheet |
7000 | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 6.9 mA | Latching, Dual Coil | - | PC Pin | - | 9 VDC | - | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
