Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DBT71275TURELAY REED SPST-NC 7.5KV 12V |
0 |
|
Datasheet |
DB | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 2 A | 5000VAC, 5000VDC - Max | 50 mA | Non Latching | - | PC Pin, Solder Turret | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DBT71275F-HRRELAY REED 7.5KV 12V SPST-NC |
0 |
|
Datasheet |
D-HR | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 2 A | 5000VAC, 5000VDC - Max | 50 mA | Non Latching | - | PC Pin, Wire Leads | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DBT72475FURELAY REED SPST-NC 7.5KV 24V |
0 |
|
Datasheet |
DB | Bulk | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 2 A | 5000VAC, 5000VDC - Max | 25.9 mA | Non Latching | - | PC Pin, Wire Leads | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DBT72475SURELAY REED SPST-NC 7.5KV 24V |
0 |
|
Datasheet |
DB | Bulk | Active | Chassis Mount | 24VDC | SPST-NC (1 Form B) | 2 A | 5000VAC, 5000VDC - Max | 25.9 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DBT70575F-HRRELAY REED 7.5KV 5V SPST-NC |
0 |
|
Datasheet |
D-HR | Bulk | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 2 A | 5000VAC, 5000VDC - Max | 132 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DBT72475TURELAY REED SPST-NC 7.5KV 24V |
0 |
|
Datasheet |
DB | Bulk | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 2 A | 5000VAC, 5000VDC - Max | 25.9 mA | Non Latching | - | PC Pin, Solder Turret | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DBT70575SURELAY REED SPST-NC 7.5KV 5V |
0 |
|
Datasheet |
DB | Bulk | Active | Chassis Mount | 5VDC | SPST-NC (1 Form B) | 2 A | 5000VAC, 5000VDC - Max | 132 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DBT72475F-HRRELAY REED 7.5KV 24V SPST-NC |
0 |
|
Datasheet |
D-HR | Bulk | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 2 A | 5000VAC, 5000VDC - Max | 25.9 mA | Non Latching | - | PC Pin, Wire Leads | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DBT70575TURELAY REED SPST-NC 7.5KV 5V |
0 |
|
Datasheet |
DB | Bulk | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 2 A | 5000VAC, 5000VDC - Max | 132 mA | Non Latching | - | PC Pin, Solder Turret | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
DBR70510FRELAY REED SPST-NC 3A 5V |
0 |
|
Datasheet |
DB | Tray | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 132 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
DBR70510TRELAY REED HV 10KV N/C 5VDC PCB |
0 |
|
Datasheet |
D | Bulk | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 131.6 mA | Non Latching | - | PC Pin, Solder Turret | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
DBR71210TRELAY REED HV 10KV N/C 12VDC PCB |
0 |
|
Datasheet |
D | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 50 mA | Non Latching | - | PC Pin, Solder Turret | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
DBR72410TRELAY REED HV 10KV N/C 24VDC PCB |
0 |
|
Datasheet |
D | Bulk | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 25.9 mA | Non Latching | - | PC Pin, Solder Turret | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
DBR72410SRELAY REED SPST-NC 3A 24V |
0 |
|
Datasheet |
DB | Bulk | Active | Chassis Mount | 24VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 25.9 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
DBR70510SRELAY REED SPST-NC 3A 5V |
0 |
|
Datasheet |
DB | Tray | Active | Chassis Mount | 5VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 132 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
DBR71210SRELAY REED SPST-NC 3A 12V |
0 |
|
Datasheet |
DB | Tray | Active | Chassis Mount | 12VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 50 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
DBT71210-HRRELAY REED SPST-NC 2A 12V |
0 |
|
Datasheet |
D-HR | Tray | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 50 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DBT72410-HRRELAY REED SPST-NC 2A 24V |
0 |
|
Datasheet |
D-HR | Tray | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 26 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|

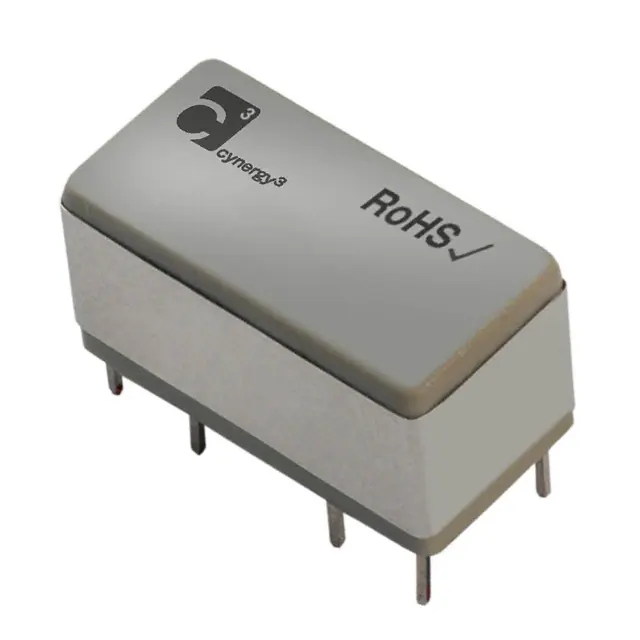

TLR212SMRELAY REED SPST-NO 500MA 12V |
0 |
|
Datasheet |
2 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 300VAC, 300VDC - Max | 7.8 mA | Latching, Dual Coil | - | PC Pin | - | 7 VDC | - | 1 ms | 0.5 ms | -40°C ~ 100°C | Rhodium (Rh), Ruthenium (Ru) |
|
DAT70510F-HRRELAY REED SPST-NO 2A 5V |
0 |
|
Datasheet |
D-HR | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 179 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
