Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

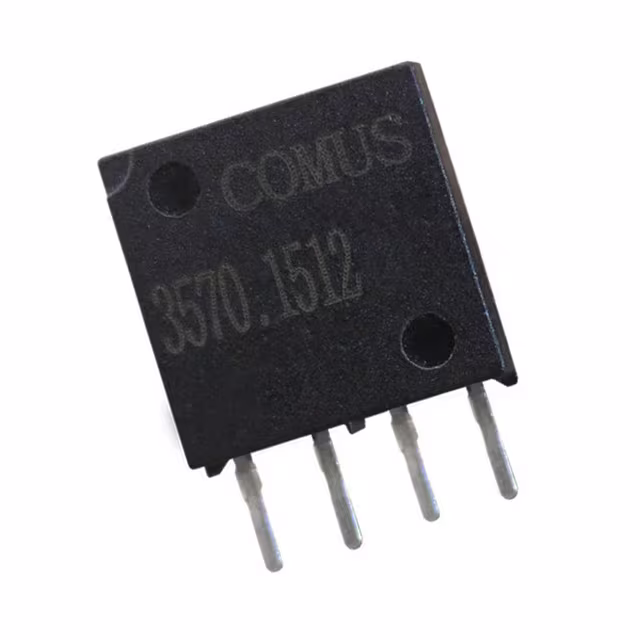

3570-1512-053RELAY REED SIP SPST .5A 5V W/DIO Comus International |
0 |
|
Datasheet |
3570 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -40°C ~ 85°C | - |
|
|
3570-1512-123RELAY REED SIP SPST .5A 12V W/DI Comus International |
0 |
|
Datasheet |
3570 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 16 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | -40°C ~ 85°C | - |
|
3570-1421-124RELAY REED SIP DPST .5A 12V EM/D Comus International |
0 |
|
Datasheet |
3570 | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 16 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.75 ms | 0.5 ms | -40°C ~ 85°C | - |
|
3570-1429-122RELAY REED SIP DPST 1A 12V W/EM Comus International |
0 |
|
Datasheet |
3570 | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 1 A | 200VDC - Max | 16 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.75 ms | 0.5 ms | -40°C ~ 85°C | - |
|
|
3570-1429-124RELAY REED SIP DPST 1A 12V EM/DI Comus International |
0 |
|
Datasheet |
3570 | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 1 A | 200VDC - Max | 16 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.75 ms | 0.5 ms | -40°C ~ 85°C | - |
|
CGSM-051A-GRELAY RF SPST-NO 500MA 5V Comus International |
0 |
|
Datasheet |
CGSM | Tube | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 500 mA | 120VAC, 170VDC - Max | 33.3 mA | Non Latching | - | Gull Wing | - | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
|
CGSM-031A-GRELAY RF SPST-NO 500MA 3.3V Comus International |
0 |
|
Datasheet |
CGSM | Tube | Active | Surface Mount | 3.3VDC | SPST-NO (1 Form A) | 500 mA | 120VAC, 170VDC - Max | 47.1 mA | Non Latching | - | Gull Wing | - | 2.5 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
CGSM-031A-JRELAY RF SPST-NO 500MA 3.3V Comus International |
0 |
|
Datasheet |
CGSM | Tube | Active | Surface Mount | 3.3VDC | SPST-NO (1 Form A) | 500 mA | 120VAC, 170VDC - Max | 47.1 mA | Non Latching | - | J Lead | - | 2.5 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
|
CGSM-051A-JRELAY RF SPST-NO 500MA 5V Comus International |
0 |
|
Datasheet |
CGSM | Tube | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 500 mA | 120VAC, 170VDC - Max | 33.3 mA | Non Latching | - | J Lead | - | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
|
3570-1512-121RELAY REED SIP SPST .5A 12V Comus International |
3 |
|
Datasheet |
3570 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 16 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | -40°C ~ 85°C | - |
