Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DAT71215FRELAY REED SPST-NO 2A 12V Sensata Technologies, Inc. |
28 |
|
Datasheet |
DA | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 10000VAC, 10000VDC - Max | 126 mA | Non Latching | - | PC Pin, Wire Leads | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
SAR91203RELAY REED SPST 500MA 12V Sensata Technologies, Inc. |
247 |
|
Datasheet |
S | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 20VAC, 20VDC - Max | 20 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 1 ms | 0.5 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
DAT200-05RELAY REED SPST-NO 3A 5V Sensata Technologies, Inc. |
80 |
|
Datasheet |
D200 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 2500VAC, 2500VDC - Max | 179 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 6 ms | 1 ms | -20°C ~ 70°C | Tungsten (W) |
|
DAT71210-HRRELAY REED SPST-NO 2A 12V Sensata Technologies, Inc. |
38 |
|
Datasheet |
D-HR | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 80 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|

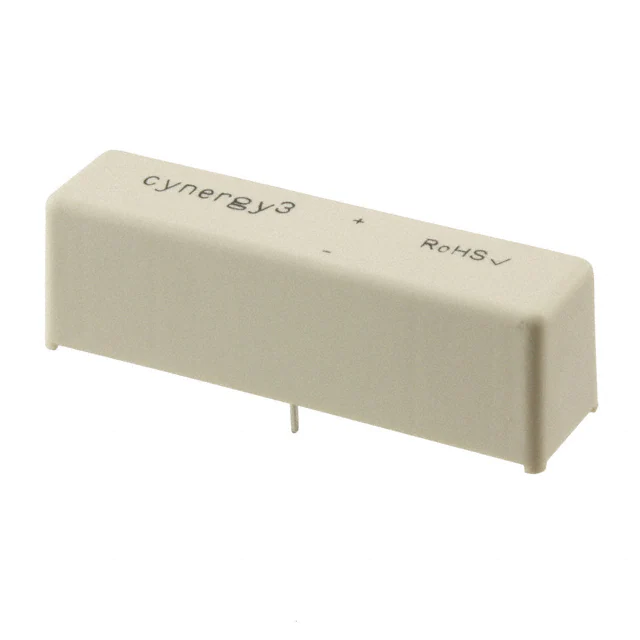

DBR71210RELAY REED SPST-NC 3A 12V Sensata Technologies, Inc. |
130 |
|
Datasheet |
DB | Tray | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 50 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
|

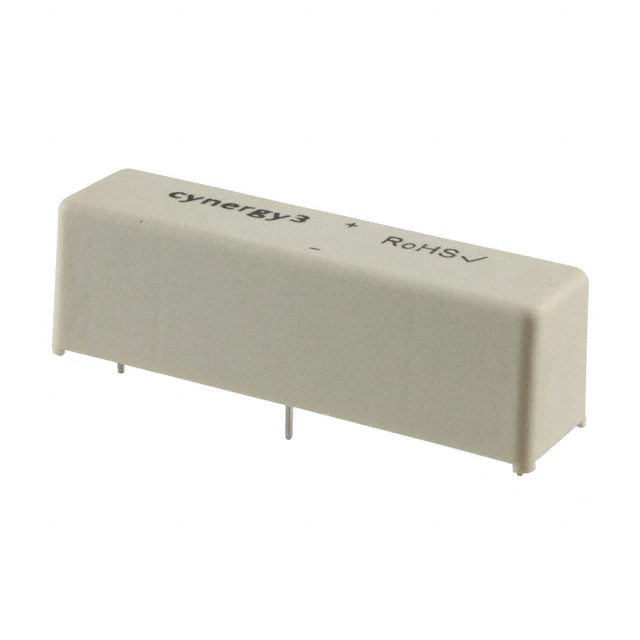

DBR72410RELAY REED SPST-NC 3A 24V Sensata Technologies, Inc. |
60 |
|
Datasheet |
DB | Tray | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 25.9 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
DAR72410SRELAY REED SPST-NO 3A 24V Sensata Technologies, Inc. |
45 |
|
Datasheet |
DA | Tray | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 30.7 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|

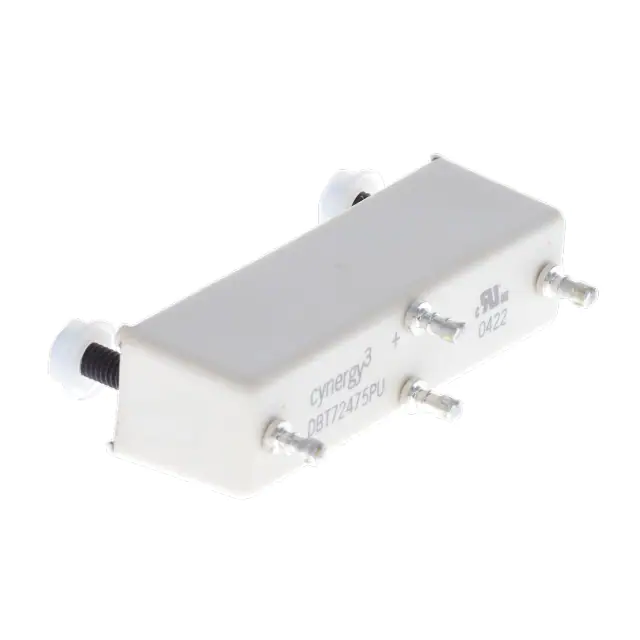

DBT72475PURELAY REED SPST-NC 7.5KV 24V Sensata Technologies, Inc. |
46 |
|
Datasheet |
DB | Bulk | Active | Chassis Mount | 24VDC | SPST-NC (1 Form B) | 2 A | 5000VAC, 5000VDC - Max | 25.9 mA | Non Latching | - | Solder Turret | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
DBT72410PRELAY REED SPST-NC 2A 24V Sensata Technologies, Inc. |
472 |
|
Datasheet |
DB | Bulk | Active | Chassis Mount | 24VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 25.9 mA | Non Latching | - | Solder Turret | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT72415-HRRELAY REED SPST-NO 2A 24V Sensata Technologies, Inc. |
53 |
|
Datasheet |
D-HR | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 10000VAC, 10000VDC - Max | 68.6 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
