Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DAT72415TRELAY REED HV 15KV N/O 24VDC PCB Sensata Technologies, Inc. |
5 |
|
Datasheet |
D | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 1000VAC, 1000VDC - Max | 68.6 mA | Non Latching | - | PC Pin, Solder Turret | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|

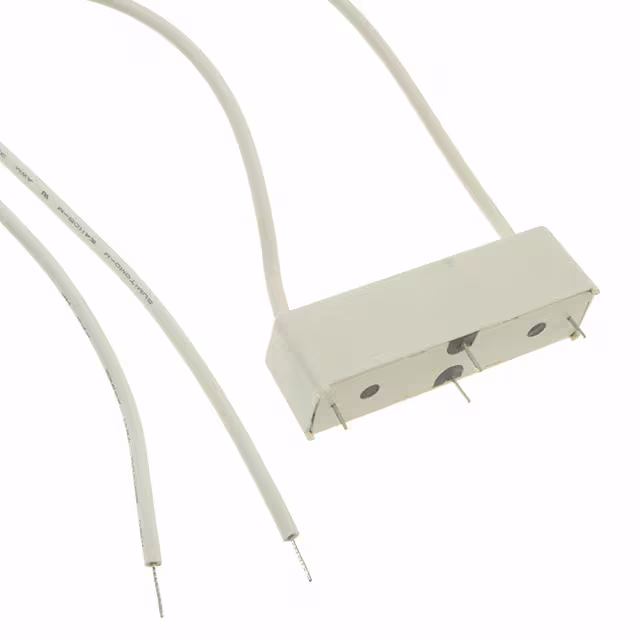

DAR70505FURELAY REED SPST-NO 5KV 5V Sensata Technologies, Inc. |
4 |
|
Datasheet |
DA | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 179 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
DAR72405TURELAY REED SPST-NO 5KV 24V Sensata Technologies, Inc. |
0 |
|
Datasheet |
DA | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 30.8 mA | Non Latching | - | PC Pin, Solder Turret | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
DAT70505TURELAY REED SPST-NO 5KV 5V Sensata Technologies, Inc. |
0 |
|
Datasheet |
DA | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 3500VAC, 3500VDC - Max | 179 mA | Non Latching | - | PC Pin, Solder Turret | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT72405TURELAY REED SPST-NO 5KV 24V Sensata Technologies, Inc. |
0 |
|
Datasheet |
DA | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 3500VAC, 3500VDC - Max | 30.8 mA | Non Latching | - | PC Pin, Solder Turret | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
DAT71205FURELAY REED SPST-NO 5KV 12V Sensata Technologies, Inc. |
3 |
|
Datasheet |
DA | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 3500VAC, 3500VDC - Max | 80 mA | Non Latching | - | PC Pin, Wire Leads | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DBR70505SURELAY REED SPST-NC 5KV 5V Sensata Technologies, Inc. |
0 |
|
Datasheet |
DB | Bulk | Active | Chassis Mount | 5VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 132 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
|

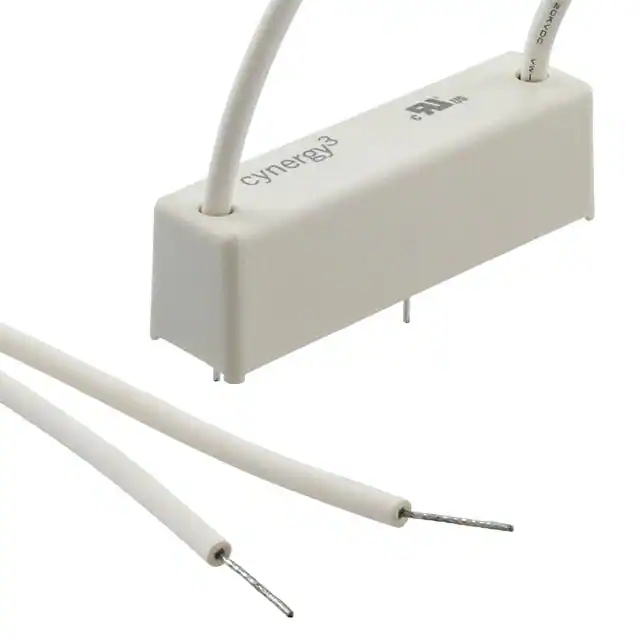

DBR70505FURELAY REED SPST-NC 5KV 5V Sensata Technologies, Inc. |
0 |
|
Datasheet |
DB | Bulk | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 132 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
DBR70505TURELAY REED SPST-NC 5KV 5V Sensata Technologies, Inc. |
0 |
|
Datasheet |
DB | Bulk | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 132 mA | Non Latching | - | PC Pin, Solder Turret | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
DBR71205FURELAY REED SPST-NC 5KV 12V Sensata Technologies, Inc. |
0 |
|
Datasheet |
DB | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 50 mA | Non Latching | - | PC Pin, Wire Leads | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
