Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74431435022FIXED IND 220NH 31A 0.00028OHM Würth Elektronik |
585 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 220 nH | ±20% | 31 A | 43A | Shielded | 0.28mOhm | - | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1435 | 0.537" L x 0.531" W (13.65mm x 13.50mm) | 0.146" (3.70mm) |
|

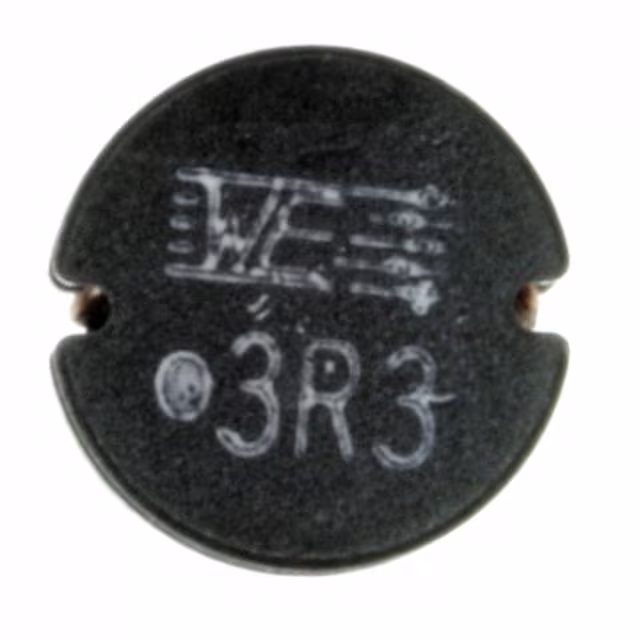

744776033AFIXED IND 3.3UH 5A 20 MOHM SMD Würth Elektronik |
504 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 5 A | - | Unshielded | 20mOhm Max | 34 @ 7.96MHz | 55MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.374" L x 0.374" W (9.50mm x 9.50mm) | 0.228" (5.80mm) |
|

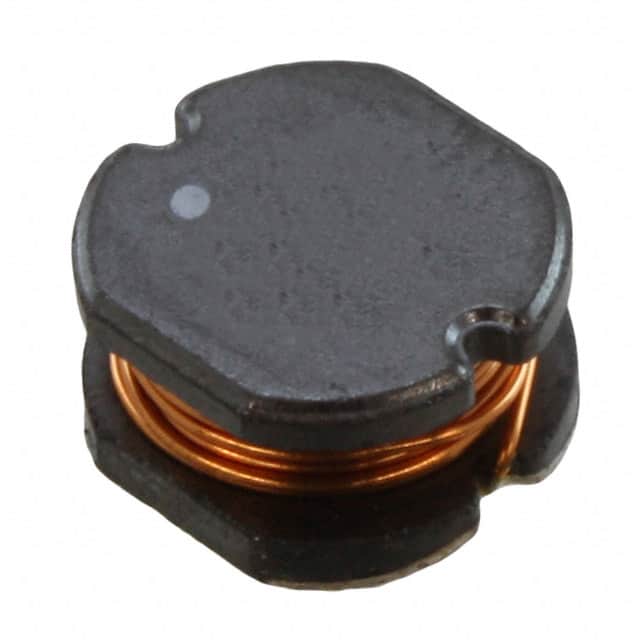

744776215FIXED IND 150UH 810MA 470MOHM SM Würth Elektronik |
500 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 810 mA | 900mA | Unshielded | 470mOhm Max | - | 6MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|
|
744776218FIXED IND 180UH 760MA 630MOHM SM Würth Elektronik |
500 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 760 mA | 780mA | Unshielded | 630mOhm Max | - | 5.4MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|
784776127FIXED IND 27UH 1.95A 110MOHM SMD Würth Elektronik |
500 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 1.95 A | 1.98A | Unshielded | 110mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 1054 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|
|
784776182FIXED IND 82UH 1.11A 250MOHM SMD Würth Elektronik |
500 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 1.11 A | 1.17A | Unshielded | 250mOhm Max | - | 7MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 1054 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|
|
784776212FIXED IND 120UH 940MA 400MOHM SM Würth Elektronik |
500 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 940 mA | 990mA | Unshielded | 400mOhm Max | - | 6MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 1054 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|
|
784776218FIXED IND 180UH 760MA 630MOHM SM Würth Elektronik |
500 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±20% | 760 mA | 780mA | Unshielded | 630mOhm Max | - | 5MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 1054 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|
|
784776222FIXED IND 220UH 670MA 730MOHM SM Würth Elektronik |
500 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 670 mA | 770mA | Unshielded | 730mOhm Max | - | 4.5MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 1054 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|
|
784776233FIXED IND 330UH 520MA 1.15OHM SM Würth Elektronik |
500 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 520 mA | 590mA | Unshielded | 1.15Ohm Max | - | 4MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 1054 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
