Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744313068FIXED IND 680NH 22A 1.58MOHM SMD Würth Elektronik |
667 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 nH | ±20% | 22 A | 40A | Shielded | 1.58mOhm | - | 90MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1335 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.138" (3.50mm) |
|
|
744313180FIXED IND 1.8UH 14A 5.6 MOHM SMD Würth Elektronik |
619 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.8 µH | ±20% | 14 A | 22A | Shielded | 5.6mOhm | - | 48MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1335 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.138" (3.50mm) |
|
744325016FIXED IND 160NH 25A 0.51MOHM SMD Würth Elektronik |
327 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 160 nH | ±20% | 25 A | 58A | Shielded | 0.51mOhm | - | 400MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1050 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.197" (5.00mm) |
|
78439346150WE-XHMA SMT POWER INDUCTOR 6060; Würth Elektronik |
657 |
|
Datasheet |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 15 µH | ±20% | 4.2 A | 7.4A | Shielded | 42mOhm | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
|
|
78439346068WE-XHMA SMT POWER INDUCTOR 6060; Würth Elektronik |
428 |
|
Datasheet |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 6.5 A | 11.3A | Shielded | 17.6mOhm | - | 22MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
|
|
78439346047WE-XHMA SMT POWER INDUCTOR 6060; Würth Elektronik |
258 |
|
Datasheet |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 7.4 A | 13A | Shielded | 13mOhm | - | 28MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
|

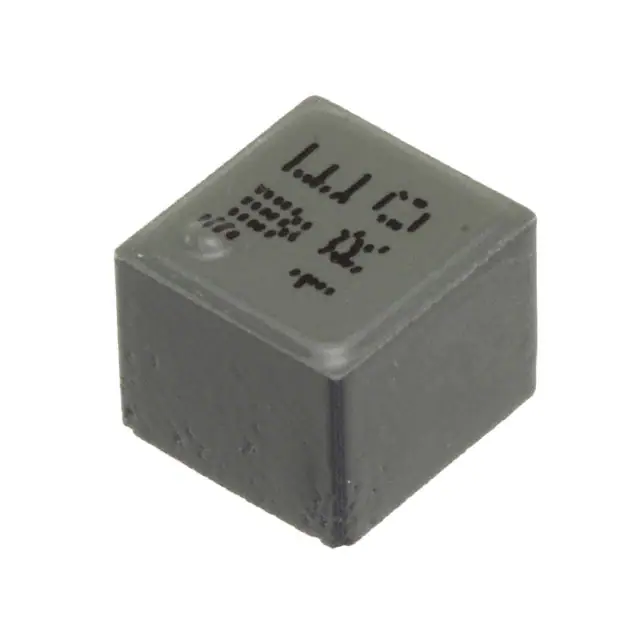

74439358010FIXED IND 1UH 17A 2.1 MOHM SMD Würth Elektronik |
2,810 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 17 A | 34A | Shielded | 2.1mOhm | - | 51MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8080 | 0.346" L x 0.327" W (8.80mm x 8.30mm) | 0.315" (8.00mm) |
|
|
78439358047WE-XHMA SMT POWER INDUCTOR 8080; Würth Elektronik |
433 |
|
Datasheet |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 9.5 A | 16.65A | Shielded | 8.65mOhm | - | 22MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.327" W (8.80mm x 8.30mm) | 0.315" (8.00mm) |
|
|
78439358100WE-XHMA SMT POWER INDUCTOR 8080; Würth Elektronik |
399 |
|
Datasheet |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 5.8 A | 13.5A | Shielded | 19mOhm | - | 17MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.327" W (8.80mm x 8.30mm) | 0.315" (8.00mm) |
|
|
78439369047WE-XHMA SMT POWER INDUCTOR 1090; Würth Elektronik |
330 |
|
Datasheet |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 13.5 A | 28.05A | Shielded | 5mOhm | - | 21MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.413" W (11.60mm x 10.50mm) | 0.358" (9.10mm) |
