Fixed Inductors
| 制造商 | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RLS-126FIXED IND 12UH 800MA 420MOHM SMD Recom Power |
1,800 | - |
|
Datasheet |
- | 1812 (4532 Metric) | Strip | Active | Wirewound | - | 12 µH | ±20% | 800 mA | 1.4A | Unshielded | 420mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.122" (3.10mm) |
|
RLS-226FIXED IND 22UH 630MA 700MOHM SMD Recom Power |
970 | - |
|
Datasheet |
- | 1812 (4532 Metric) | Bulk | Active | Wirewound | - | 22 µH | ±10% | 630 mA | 1A | Unshielded | 700mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.122" (3.10mm) |
|

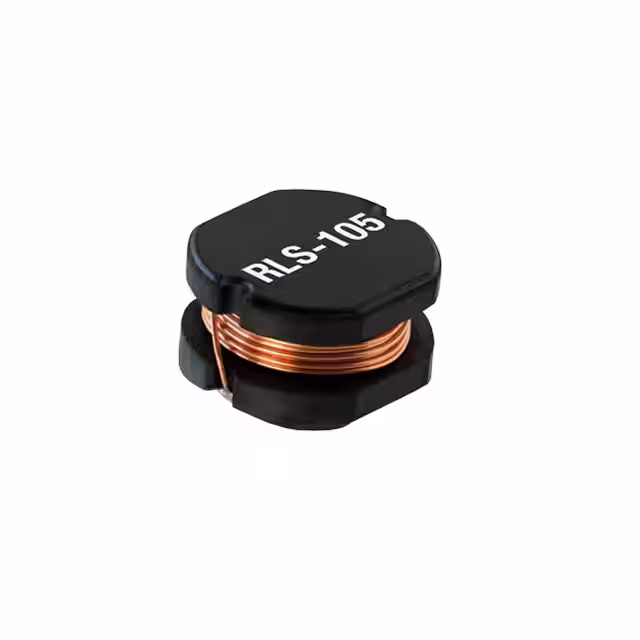

RLS-105FIXED IND 100UH 1.02A 350MOHM SM Recom Power |
55 | - |
|
Datasheet |
- | Nonstandard | Bulk | Active | Wirewound | - | 100 µH | ±10% | 1.02 A | 1.1A | Unshielded | 350mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|
|
RLS-105-RFIXED IND 100UH 1.02A 350MOHM SM Recom Power |
0 | - |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±10% | 1.02 A | 1.1A | Unshielded | 350mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
