Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPI-0612FS-470M-TFIXED IND 47UH 460MA 1.25OHM SMD Abracon LLC |
0 |
|
Datasheet |
ASPI-0612FS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 460 mA | 520mA | Shielded | 1.25Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
ASPIAIG-S6055-220M-TFIXED IND 22UH 2.35A 100MOHM SMD Abracon LLC |
0 |
|
Datasheet |
ASPIAIG-S6055 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 22 µH | ±20% | 2.35 A | 2.6A | Shielded | 100mOhm | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.224" (5.70mm) |
|
ASPI-0310FS-470M-T2FIXED IND 47UH 350MA 1.6 OHM SMD Abracon LLC |
0 |
|
Datasheet |
ASPI-0310FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 47 µH | ±20% | 350 mA | 280mA | Shielded | 1.6Ohm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
ASPI-6045T-102M-TIND 1000UH 0.3A 5850M Abracon LLC |
0 |
|
Datasheet |
ASPI-6045T | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | Ferrite | 1 mH | ±20% | 300 mA | 300mA | Shielded | 5.85Ohm Max | - | 1.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
AIUR-06-332KFIXED IND 3.3MH 350MA 3.7 OHM TH Abracon LLC |
0 |
|
Datasheet |
AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±10% | 350 mA | 480mA | Unshielded | 3.7Ohm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.710" (18.03mm) |
|
ASPI-0412FS-100M-T4FIXED IND 10UH 770MA 459MOHM SMD Abracon LLC |
0 |
|
Datasheet |
ASPI-0412FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 10 µH | ±20% | 770 mA | 800mA | Shielded | 459mOhm | - | - | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
ASPI-0705-120K-TFIXED IND 12UH 2A 80 MOHM SMD Abracon LLC |
0 |
|
Datasheet |
ASPI-0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 2 A | - | Unshielded | 80mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|

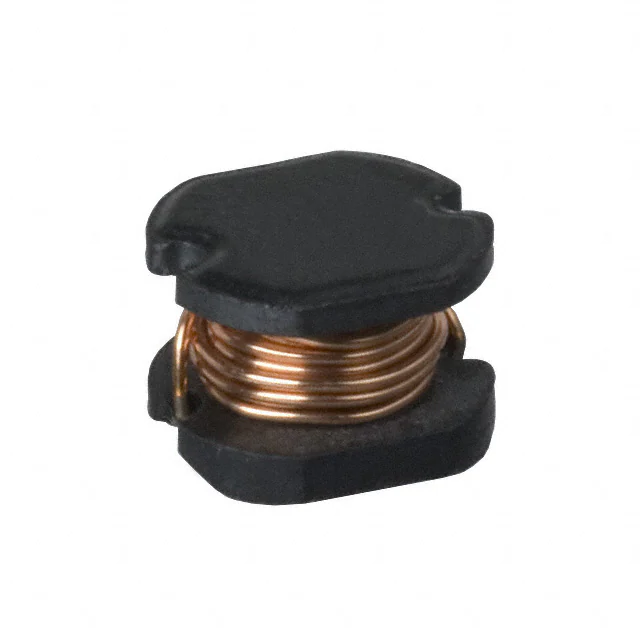

ASPI-0705-150K-TFIXED IND 15UH 1.8A 90 MOHM SMD Abracon LLC |
0 |
|
Datasheet |
ASPI-0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 1.8 A | - | Unshielded | 90mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
ASPI-0705-820K-TFIXED IND 82UH 780MA 370MOHM SMD Abracon LLC |
0 |
|
Datasheet |
ASPI-0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 780 mA | - | Unshielded | 370mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
ASPI-0705-121K-TFIXED IND 120UH 660MA 470MOHM SM Abracon LLC |
0 |
|
Datasheet |
ASPI-0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 660 mA | - | Unshielded | 470mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
