Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

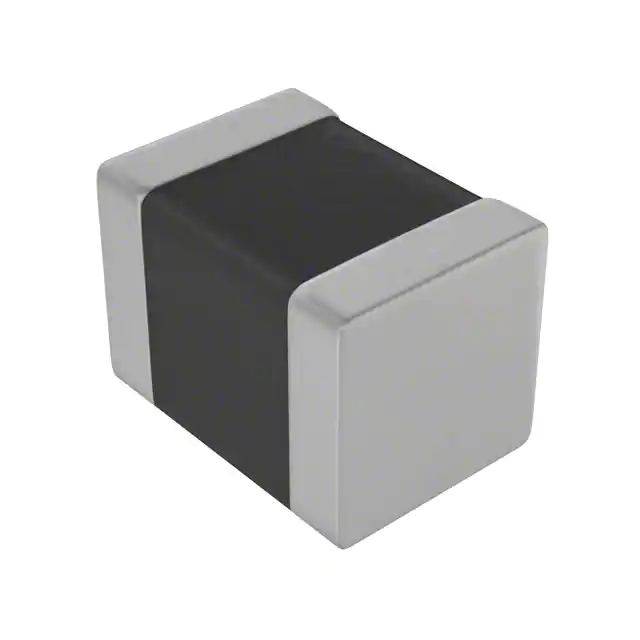

L1007C100MDWITFIXED IND 10UH 680MA 360MOHM SMD KEMET |
0 |
|
Datasheet |
L-DWI | 1007 (2518 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 680 mA | 480mA | - | 360mOhm | - | 30MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
|
L0805C1R8KSMSTFIXED IND 1.8UH 50MA 600MOHM SMD KEMET |
0 |
|
Datasheet |
L-SMS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1.8 µH | ±10% | 50 mA | - | Shielded | 600mOhm Max | 45 @ 10MHz | 55MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0805 (2125 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
L0806B3R9JSWSTFIXED IND 3.9UH 275MA 740MOHM SM KEMET |
0 |
|
Datasheet |
L-SWS | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.9 µH | ±5% | 275 mA | - | Unshielded | 740mOhm | - | 43MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
L0806B8R2JSWSTFIXED IND 8.2UH 225MA 1.1OHM SMD KEMET |
0 |
|
Datasheet |
L-SWS | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 8.2 µH | ±5% | 225 mA | - | Unshielded | 1.1Ohm | - | 30MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
L0806B220JSWSTFIXED IND 22UH 140MA 2.8 OHM SMD KEMET |
0 |
|
Datasheet |
L-SWS | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±5% | 140 mA | - | Unshielded | 2.8Ohm | - | 17MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
L0806B330JSWSTFIXED IND 33UH 125MA 3.6 OHM SMD KEMET |
0 |
|
Datasheet |
L-SWS | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±5% | 125 mA | - | Unshielded | 3.6Ohm | - | 15MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
L0806BR18JSWSTFIXED IND 180NH 560MA 150MOHM SM KEMET |
0 |
|
Datasheet |
L-SWS | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 180 nH | ±5% | 560 mA | - | Unshielded | 150mOhm | - | 500MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
L0806BR22JSWSTFIXED IND 220NH 520MA 200MOHM SM KEMET |
0 |
|
Datasheet |
L-SWS | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 nH | ±5% | 520 mA | - | Unshielded | 200mOhm | - | 450MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
L0806BR39JSWSTFIXED IND 390NH 440MA 260MOHM SM KEMET |
0 |
|
Datasheet |
L-SWS | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 390 nH | ±5% | 440 mA | - | Unshielded | 260mOhm | - | 375MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
L0806BR47JSWSTFIXED IND 470NH 430MA 260MOHM SM KEMET |
0 |
|
Datasheet |
L-SWS | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 nH | ±5% | 430 mA | - | Unshielded | 260mOhm | - | 350MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
