FETs, MOSFETs
| 制造商 | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STW68N60M6MOSFET N-CH 600V TO247-3 STMicroelectronics |
103 | - |
|
Datasheet |
MDmesh™ M6 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 63A (Tc) | 0V, 10V | 41mOhm @ 31.5A, 10V | 4.75V @ 250µA | 106 nC @ 10 V | ±25V | 4360 pF @ 100 V | - | 390W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|

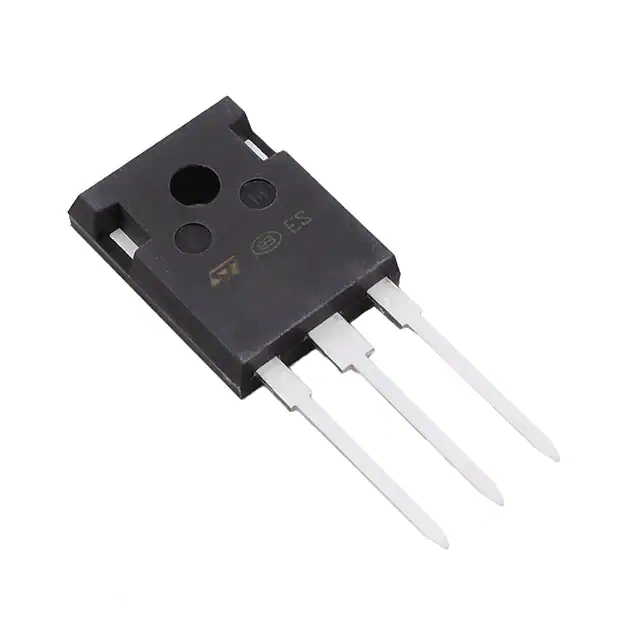

SCTWA20N120IC POWER MOSFET 1200V HIP247 STMicroelectronics |
526 | - |
|
Datasheet |
- | TO-247-3 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 20A (Tc) | 20V | 239mOhm @ 10A, 20V | 3.5V @ 1mA (Typ) | 45 nC @ 20 V | +25V, -10V | 650 pF @ 400 V | - | 175W (Tc) | -55°C ~ 200°C (TJ) | - | - | Through Hole | HiP247™ Long Leads |
|
STW70N60DM6-4MOSFET N-CH 600V 62A TO247-4 STMicroelectronics |
150 | - |
|
Datasheet |
- | TO-247-4 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 62A (Tc) | 10V | 42mOhm @ 31A, 10V | 4.75V @ 250µA | 99 nC @ 10 V | ±25V | 4360 pF @ 100 V | - | 390W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-4 |
|
STL42N65M5MOSFET N-CH 650V 4A PWRFLAT HV STMicroelectronics |
2,915 | - |
|
Datasheet |
MDmesh™ V | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 4A (Ta), 34A (Tc) | 10V | 79mOhm @ 16.5A, 10V | 5V @ 250µA | 100 nC @ 10 V | ±25V | 4650 pF @ 100 V | - | 3W (Ta), 208W (Tc) | 150°C (TJ) | - | - | Surface Mount | PowerFlat™ (8x8) HV |
|
STFW60N65M5MOSFET N-CH 650V 46A ISOWATT STMicroelectronics |
282 | - |
|
Datasheet |
MDmesh™ V | TO-3P-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 46A (Tc) | 10V | 59mOhm @ 23A, 10V | 5V @ 250µA | 139 nC @ 10 V | ±25V | 6810 pF @ 100 V | - | 79W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3PF |
|
|
SCTWA30N120IC POWER MOSFET 1200V HIP247 STMicroelectronics |
294 | - |
|
Datasheet |
- | TO-247-3 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 45A (Tc) | 20V | 100mOhm @ 20A, 20V | 3.5V @ 1mA (Typ) | 105 nC @ 20 V | +25V, -10V | 1700 pF @ 400 V | - | 270W (Tc) | -55°C ~ 200°C (TJ) | - | - | Through Hole | HiP247™ Long Leads |
|
STFU15NM65NMOSFET N-CH 650V 12A TO220FP STMicroelectronics |
466 | - |
|
Datasheet |
MDmesh™ II | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 12A (Tc) | 10V | 380mOhm @ 6A, 10V | 4V @ 250µA | 33.3 nC @ 10 V | ±25V | 983 pF @ 50 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
|
STW46NF30MOSFET N-CH 300V 42A TO247 STMicroelectronics |
52 | - |
|
Datasheet |
STripFET™ II | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 42A (Tc) | 10V | 75mOhm @ 17A, 10V | 4V @ 250µA | 90 nC @ 10 V | ±20V | 3200 pF @ 25 V | - | 300W (Tc) | 175°C (TJ) | - | - | Through Hole | TO-247-3 |
|
STF45N65M5MOSFET N-CH 650V 35A TO220FP STMicroelectronics |
56 | - |
|
Datasheet |
MDmesh™ V | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 35A (Tc) | 10V | 78mOhm @ 19.5A, 10V | 5V @ 250µA | 91 nC @ 10 V | ±25V | 3375 pF @ 100 V | - | 40W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
|
STP55NF06FPMOSFET N-CH 60V 50A TO220FP STMicroelectronics |
36 | - |
|
Datasheet |
STripFET™ II | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 50A (Tc) | 10V | 18mOhm @ 27.5A, 10V | 4V @ 250µA | 60 nC @ 10 V | ±20V | 1300 pF @ 25 V | - | 30W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220FP |
