FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HUF76629D3ST-F085MOSFET N-CH 100V 20A TO252 |
0 |
|
Datasheet |
UltraFET™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 20A (Tc) | 4.5V, 10V | 52mOhm @ 20A, 10V | 3V @ 250µA | 43 nC @ 10 V | ±16V | 1280 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252AA |
|
HUF76419S3ST-F085MOSFET N-CH 60V 29A D2PAK |
0 |
|
- |
PowerTrench® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 29A (Tc) | 10V | 35mOhm @ 29A, 10V | 3V @ 250µA | 28.5 nC @ 10 V | ±16V | 870 pF @ 25 V | - | 100W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) |
|
FDPF035N06B-F152MOSFET N-CH 60V 88A TO-220F |
0 |
|
Datasheet |
PowerTrench® | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 88A (Tc) | - | 3.5mOhm @ 88A, 10V | 4V @ 250µA | 99 nC @ 10 V | - | 8030 pF @ 30 V | - | 46.3W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
FCPF190N60-F152MOSFET N-CH 600V 20.2A TO220F |
0 |
|
Datasheet |
SuperFET® II | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 20.2A (Tc) | 10V | 199mOhm @ 10A, 10V | 3.5V @ 250µA | 74 nC @ 10 V | ±20V | 2950 pF @ 25 V | - | 39W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
IPD60R600P6MOSFET N-CH 600V 7.3A TO252-3 |
0 |
|
Datasheet |
CoolMOS™ P6 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 600 V | 7.3A (Tc) | 10V | 600mOhm @ 2.4A, 10V | - | 12 nC @ 10 V | ±20V | 557 pF @ 100 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
|
ZXMP3F35N8TAMOSFET P-CH 30V 9.3A 8SO |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 9.3A (Ta) | 4.5V, 10V | 12mOhm @ 12A, 10V | 2.6V @ 250µA | 77.1 nC @ 10 V | ±20V | 4600 pF @ 15 V | - | 1.56W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
ZXMP3F36N8TAMOSFET P-CH 30V 7.2A 8SO |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 7.2A (Ta) | 4.5V, 10V | 20mOhm @ 10A, 10V | 2.5V @ 250µA | 43.9 nC @ 15 V | ±20V | 2265 pF @ 15 V | - | 1.56W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
ZXMP3F37N8TAMOSFET P-CH 30V 6.4A 8SO |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 6.4A (Ta) | 4.5V, 10V | 25mOhm @ 7.1A, 10V | 2.5V @ 250µA | 31.6 nC @ 10 V | ±20V | 1678 pF @ 15 V | - | 1.56W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|

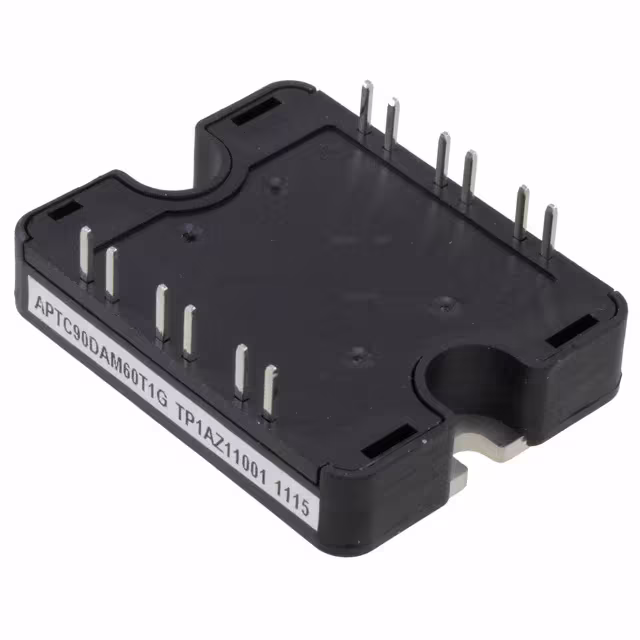

APTC90DAM60T1GMOSFET N-CH 900V 59A SP1 |
0 |
|
- |
CoolMOS™ | SP1 | Tray | Obsolete | N-Channel | MOSFET (Metal Oxide) | 900 V | 59A (Tc) | 10V | 60mOhm @ 52A, 10V | 3.5V @ 6mA | 540 nC @ 10 V | ±20V | 13600 pF @ 100 V | - | 462W (Tc) | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP1 |
|
HN4K03JUTE85LFMOSFET N-CH 20V 100MA USV |
0 |
|
- |
- | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 100mA (Ta) | 2.5V | 12Ohm @ 10mA, 2.5V | - | - | 10V | 8.5 pF @ 3 V | - | 200mW (Ta) | 150°C (TJ) | - | - | Surface Mount | 5-SSOP |
|
SSM3K01T(TE85L,F)MOSFET N-CH 30V 3.2A TSM |
0 |
|
- |
π-MOSVI | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 3.2A (Ta) | 2.5V, 4V | 120mOhm @ 1.6A, 4V | - | - | ±10V | 152 pF @ 10 V | - | 1.25W (Ta) | 150°C (TJ) | - | - | Surface Mount | TSM |
|
APT38N60SC6MOSFET N-CH 600V 38A D3PAK |
0 |
|
Datasheet |
CoolMOS™ | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 38A (Tc) | 10V | 99mOhm @ 18A, 10V | 3.5V @ 1.2mA | 112 nC @ 10 V | ±20V | 2826 pF @ 25 V | - | 278W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D3PAK |
|
APT33N90JCCU2MOSFET N-CH 900V 33A SOT227 |
0 |
|
- |
- | SOT-227-4, miniBLOC | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 900 V | 33A (Tc) | 10V | 120mOhm @ 26A, 10V | 3.5V @ 3mA | 270 nC @ 10 V | ±20V | 6800 pF @ 100 V | - | 290W (Tc) | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227 |
|
|
APTC90DAM60CT1GMOSFET N-CH 900V 59A SP1 |
0 |
|
- |
CoolMOS™ | SP1 | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 900 V | 59A (Tc) | 10V | 60mOhm @ 52A, 10V | 3.5V @ 6mA | 540 nC @ 10 V | ±20V | 13600 pF @ 100 V | - | 462W (Tc) | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP1 |
|
APT12067B2LLGMOSFET N-CH 1200V 18A T-MAX |
0 |
|
Datasheet |
POWER MOS 7® | TO-247-3 Variant | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 18A (Tc) | 10V | 670mOhm @ 9A, 10V | 5V @ 2.5mA | 150 nC @ 10 V | ±30V | 4420 pF @ 25 V | - | 565W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | T-MAX™ [B2] |
|
|
APT18M80SMOSFET N-CH 800V 19A D3PAK |
0 |
|
Datasheet |
POWER MOS 8™ | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 19A (Tc) | 10V | 530mOhm @ 9A, 10V | 5V @ 1mA | 120 nC @ 10 V | ±30V | 3760 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D3PAK |
|
|
APTC90SKM60CT1GMOSFET N-CH 900V 59A SP1 |
0 |
|
- |
CoolMOS™ | SP1 | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 900 V | 59A (Tc) | 10V | 60mOhm @ 52A, 10V | 3.5V @ 6mA | 540 nC @ 10 V | ±20V | 13600 pF @ 100 V | - | 462W (Tc) | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP1 |
|
|
JAN2N6756MOSFET N-CH 100V 14A TO204AA |
0 |
|
Datasheet |
- | TO-204AA, TO-3 | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 14A (Tc) | 10V | 210mOhm @ 14A, 10V | 4V @ 250µA | 35 nC @ 10 V | ±20V | - | - | 4W (Ta), 75W (Tc) | -55°C ~ 150°C (TJ) | Military | MIL-PRF-19500/542 | Through Hole | TO-204AA (TO-3) |
|
|
JAN2N6764MOSFET N-CH 100V 38A TO204AE |
0 |
|
Datasheet |
- | TO-204AE | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 38A (Tc) | 10V | 65mOhm @ 38A, 10V | 4V @ 250µA | 125 nC @ 10 V | ±20V | - | - | 4W (Ta), 150W (Tc) | -55°C ~ 150°C (TJ) | Military | MIL-PRF-19500/543 | Through Hole | - |
|
|
JAN2N6766MOSFET N-CH 200V 30A TO3 |
0 |
|
Datasheet |
- | TO-204AE | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 30A (Tc) | 10V | 90mOhm @ 30A, 10V | 4V @ 250µA | 115 nC @ 10 V | ±20V | - | - | 4W (Ta), 150W (Tc) | -55°C ~ 150°C (TJ) | Military | MIL-PRF-19500/543 | Through Hole | TO-3 |
