FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

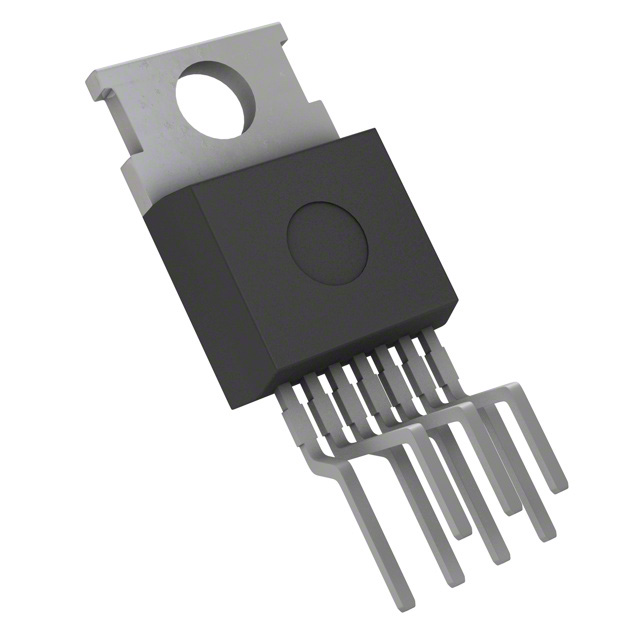

BTS282ZAKSA1MOSFET N-CH 49V 80A TO220-7 |
0 |
|
Datasheet |
TEMPFET® | TO-220-7 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 49 V | 80A (Tc) | 4.5V, 10V | 6.5mOhm @ 36A, 10V | 2V @ 240µA | 232 nC @ 10 V | ±20V | 4800 pF @ 25 V | Temperature Sensing Diode | 300W (Tc) | -40°C ~ 175°C (TJ) | - | - | Through Hole | P-TO220-7-3 |
|
BUZ31L E3044AMOSFET N-CH 200V 13.5A TO220-3 |
0 |
|
Datasheet |
SIPMOS® | TO-220-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 13.5A (Tc) | 5V | 200mOhm @ 7A, 5V | 2V @ 1mA | - | ±20V | 1600 pF @ 25 V | - | 95W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3-1 |
|
BUZ32H3045AATMA1MOSFET N-CH 200V 9.5A TO263-3 |
0 |
|
Datasheet |
SIPMOS® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 9.5A (Tc) | 10V | 400mOhm @ 6A, 10V | 4V @ 1mA | - | ±20V | 530 pF @ 25 V | - | 75W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO263-3-2 |
|
|
IPB03N03LAMOSFET N-CH 25V 80A TO263-3 |
0 |
|
Datasheet |
OptiMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 80A (Tc) | 4.5V, 10V | 2.7mOhm @ 55A, 10V | 2V @ 100µA | 57 nC @ 5 V | ±20V | 7027 pF @ 15 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3-2 |
|
|
IPB03N03LBMOSFET N-CH 30V 80A D2PAK |
0 |
|
Datasheet |
OptiMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 80A (Tc) | 4.5V, 10V | 2.8mOhm @ 55A, 10V | 2V @ 100µA | 59 nC @ 5 V | ±20V | 7624 pF @ 15 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
|
|
IPB04N03LBMOSFET N-CH 30V 80A D2PAK |
0 |
|
Datasheet |
OptiMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 80A (Tc) | 4.5V, 10V | 3.5mOhm @ 55A, 10V | 2V @ 70µA | 40 nC @ 5 V | ±20V | 5203 pF @ 15 V | - | 107W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
|
|
IPB06N03LA GMOSFET N-CH 25V 50A TO263-3 |
0 |
|
Datasheet |
OptiMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 50A (Tc) | 4.5V, 10V | 5.9mOhm @ 30A, 10V | 2V @ 40µA | 22 nC @ 5 V | ±20V | 2653 pF @ 15 V | - | 83W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3-2 |
|
|
IPB06N03LB GMOSFET N-CH 30V 50A D2PAK |
0 |
|
Datasheet |
OptiMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 50A (Tc) | 4.5V, 10V | 6.3mOhm @ 50A, 10V | 2V @ 40µA | 22 nC @ 5 V | ±20V | 2782 pF @ 15 V | - | 83W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
|
IPB070N06N GMOSFET N-CHAN D2PAK |
0 |
|
Datasheet |
OptiMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 60 V | 80A (Tc) | - | 6.7mOhm @ 80A, 10V | 4V @ 180µA | 126 nC @ 10 V | - | 4300 pF @ 30 V | - | - | - | - | - | Surface Mount | PG-TO263-3 |
|
|
IPB091N06N GMOSFET N-CHAN D2PAK |
0 |
|
Datasheet |
OptiMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 60 V | 80A (Tc) | - | 8.8mOhm @ 80A, 10V | 4V @ 130µA | 81 nC @ 10 V | - | 2800 pF @ 30 V | - | - | - | - | - | Surface Mount | PG-TO263-3 |
|
|
IPB09N03LA GMOSFET N-CH 25V 50A TO263-3 |
0 |
|
Datasheet |
OptiMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 50A (Tc) | 4.5V, 10V | 8.9mOhm @ 30A, 10V | 2V @ 20µA | 13 nC @ 5 V | ±20V | 1642 pF @ 15 V | - | 63W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3-2 |
|
|
IPB100N06S3-03MOSFET N-CH 55V 100A TO263-3 |
0 |
|
Datasheet |
OptiMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 100A (Tc) | 10V | 3mOhm @ 80A, 10V | 4V @ 230µA | 480 nC @ 10 V | ±20V | 21620 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3-2 |
|
IPB10N03LBMOSFET N-CH 30V 50A TO263-3 |
0 |
|
Datasheet |
OptiMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 50A (Tc) | 4.5V, 10V | 9.6mOhm @ 50A, 10V | 2V @ 20µA | 13 nC @ 5 V | ±20V | 1639 pF @ 15 V | - | 58W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
|
|
IPB14N03LA GMOSFET N-CH 25V 30A TO263-3 |
0 |
|
Datasheet |
OptiMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 30A (Tc) | 4.5V, 10V | 13.6mOhm @ 30A, 10V | 2V @ 20µA | 8.3 nC @ 5 V | ±20V | 1043 pF @ 15 V | - | 46W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3-2 |
|
|
IPB25N06S3-25MOSFET N-CH 55V 25A TO263-3 |
0 |
|
Datasheet |
OptiMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 25A (Tc) | 10V | 24.8mOhm @ 15A, 10V | 4V @ 20µA | 41 nC @ 10 V | ±20V | 1862 pF @ 25 V | - | 48W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3-2 |
|
|
IPB45N06S3-16MOSFET N-CH 55V 45A TO263-3 |
0 |
|
Datasheet |
OptiMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 45A (Tc) | 10V | 15.4mOhm @ 23A, 10V | 4V @ 30µA | 57 nC @ 10 V | ±20V | 2980 pF @ 25 V | - | 65W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3-2 |
|
|
IPB45N06S3L-13MOSFET N-CH 55V 45A TO263-3 |
0 |
|
Datasheet |
OptiMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 45A (Tc) | 5V, 10V | 13.1mOhm @ 26A, 10V | 2.2V @ 30µA | 75 nC @ 10 V | ±16V | 3600 pF @ 25 V | - | 65W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3-2 |
|
|
IPB77N06S3-09MOSFET N-CH 55V 77A TO263-3 |
0 |
|
Datasheet |
OptiMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 77A (Tc) | 10V | 8.8mOhm @ 39A, 10V | 4V @ 55µA | 103 nC @ 10 V | ±20V | 5335 pF @ 25 V | - | 107W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3-2 |
|
|
IPB80N06S3-07MOSFET N-CH 55V 80A TO263-3 |
0 |
|
Datasheet |
OptiMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 80A (Tc) | 10V | 6.5mOhm @ 51A, 10V | 4V @ 80µA | 170 nC @ 10 V | ±20V | 7768 pF @ 25 V | - | 135W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3-2 |
|
|
IPB80N06S3L-05MOSFET N-CH 55V 80A TO263-3 |
0 |
|
Datasheet |
OptiMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 80A (Tc) | 5V, 10V | 4.5mOhm @ 69A, 10V | 2.2V @ 115µA | 273 nC @ 10 V | ±16V | 13060 pF @ 25 V | - | 165W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3-2 |
