Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PLF0J331MDL4TDCAP ALUM POLY 330UF 20% 6.3V TH |
289 |
|
Datasheet |
PLF | Cut Tape (CT) | Active | Polymer | 330 µF | ±20% | 6.3 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.3 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.413" (10.50mm) | - | Through Hole |
|
A755KS827M0EAAE014CAP ALUM POLY 820UF 20% 2.5V TH |
697 |
|
Datasheet |
A755 | Bulk | Active | Polymer | 820 µF | ±20% | 2.5 V | 14mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 240 mA @ 120 Hz | 4.8 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
875115150003CAP ALUM POLY 330UF 20% 6.3V SMD |
687 |
|
Datasheet |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 6.3 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 175 mA @ 120 Hz | 3.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.303" (7.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
A755KS567M1AAAE015CAP ALUM POLY 560UF 20% 10V TH |
473 |
|
Datasheet |
A755 | Bulk | Active | Polymer | 560 µF | ±20% | 10 V | 15mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 241 mA @ 120 Hz | 4.82 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
RNU0E152MDN1KXCAP ALUM POLY 1500UF 20% 2.5V TH |
917 |
|
Datasheet |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 1500 µF | ±20% | 2.5 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 570 mA @ 120 Hz | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
875075155005CAP ALUM POLY 390UF 20% 6.3V SMD |
397 |
|
Datasheet |
WCAP-PSLC | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 6.3 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 260 mA @ 120 Hz | 5.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.461" (11.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
875115150004CAP ALUM POLY 390UF 20% 6.3V SMD |
540 |
|
Datasheet |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 6.3 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 175 mA @ 120 Hz | 3.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.303" (7.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
A765KN108M0GLAE012CAP ALUM POLY 1000UF 20% 4V SMD |
487 |
|
Datasheet |
A765 | Tape & Reel (TR) | Active | Polymer | 1000 µF | ±20% | 4 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 261 mA @ 120 Hz | 5.22 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PLF0G821MDO1TDCAP ALUM POLY 820UF 20% 4V TH |
153 |
|
Datasheet |
PLF | Cut Tape (CT) | Active | Polymer | 820 µF | ±20% | 4 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
RHT1A221MDN1CAP ALUM POLY 220UF 20% 10V TH |
528 |
|
Datasheet |
FPCAP, RHT | Bulk | Active | Polymer | 220 µF | ±20% | 10 V | 17mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 395 mA @ 120 Hz | 3.95 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.453" (11.50mm) | - | Through Hole |
|

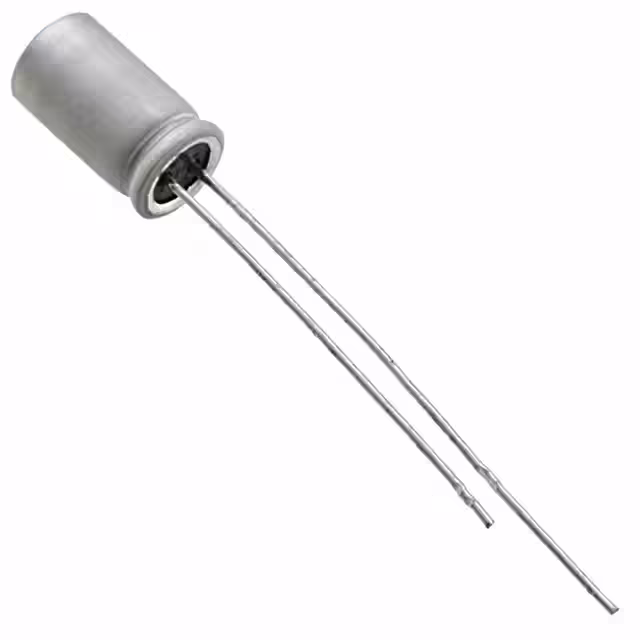

APSK2R5ELL471ME08SCAP ALUM POLY 470UF 20% 2.5V TH |
1,000 |
|
Datasheet |
NPCAP™-PSK | Bulk | Active | Polymer | 470 µF | ±20% | 2.5 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.35 A @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
PCF0E221MCL4GBCAP ALUM POLY 220UF 20% 2.5V SMD |
940 |
|
Datasheet |
PCF | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 2.5 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.8 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.217" (5.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
RNS0J102MDN1PHCAP ALUM POLY 1000UF 20% 6.3V TH |
940 |
|
Datasheet |
FPCAP, RNS | Cut Tape (CT) | Active | Polymer | 1000 µF | ±20% | 6.3 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 550 mA @ 120 Hz | 5.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
|
PCF0G151MCL4GBCAP ALUM POLY 150UF 20% 4V SMD |
852 |
|
Datasheet |
PCF | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 4 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.8 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.217" (5.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
16SVPA39MAACAP ALUM POLY 39UF 20% 16V SMD |
705 |
|
Datasheet |
OS-CON™, SVPA | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 16 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 102 mA @ 120 Hz | 2.04 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
PCF0G221MCL1GSCAP ALUM POLY 220UF 20% 4V SMD |
177 |
|
Datasheet |
PCF | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 4 V | 21mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
875115152006CAP ALUM POLY 560UF 20% 6.3V SMD |
116 |
|
Datasheet |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 6.3 V | 11mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 240 mA @ 120 Hz | 4.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.343" (8.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
A765KN128M0GLAE012CAP ALUM POLY 1200UF 20% 4V SMD |
473 |
|
Datasheet |
A765 | Tape & Reel (TR) | Active | Polymer | 1200 µF | ±20% | 4 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 175 mA @ 120 Hz | 3.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
RL80J471MDNASQCAP ALUM POLY 470UF 20% 6.3V TH |
68 |
|
Datasheet |
FPCAP, RL8 | Bulk | Active | Polymer | 470 µF | ±20% | 6.3 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 570 mA @ 120 Hz | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
RL80E152MDN1KXCAP ALUM POLY 1500UF 20% 2.5V TH |
82 |
|
Datasheet |
FPCAP, RL8 | Cut Tape (CT) | Active | Polymer | 1500 µF | ±20% | 2.5 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | - | Through Hole |
