Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PLF1E470MDO2TDCAP ALUM POLY 47UF 20% 25V TH Nichicon |
617 |
|
Datasheet |
PLF | Cut Tape (CT) | Active | Polymer | 47 µF | ±20% | 25 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
PCJ1A271MCL1GSCAP ALUM POLY 270UF 20% 10V SMD Nichicon |
857 |
|
Datasheet |
PCJ | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 10 V | 21mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.22 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

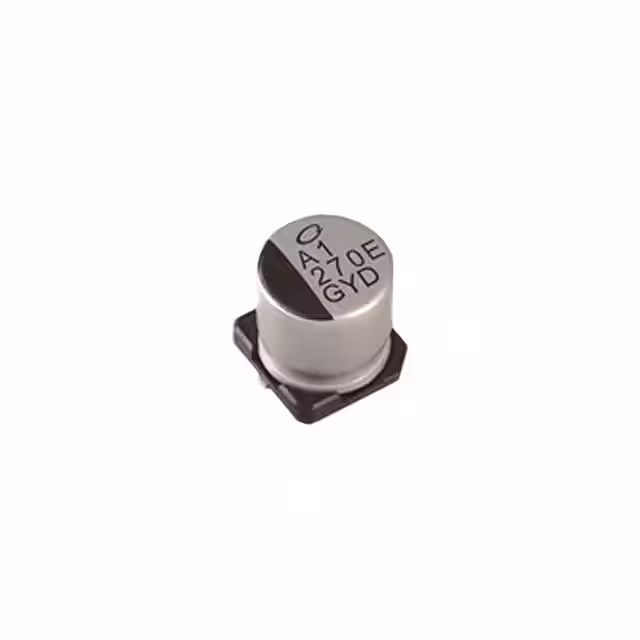

GYD1E271MCQ1GSCAP ALUMHYB 270UF 20% 25V SMD Nichicon |
1,996 |
|
Datasheet |
GYD | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 25 V | 20mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 270 mA @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
RNL1C122MDS1PXCAP ALUM POLY 1200UF 20% 16V TH Nichicon |
505 |
|
Datasheet |
FPCAP, RNL | Cut Tape (CT) | Active | Polymer | 1200 µF | ±20% | 16 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 750 mA @ 120 Hz | 7.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.846" (21.50mm) | - | Through Hole |
|
PLG0E392MDO1TDCAP ALUM POLY 3900UF 20% 2.5V TH Nichicon |
130 |
|
Datasheet |
PLG | Cut Tape (CT) | Active | Polymer | 3900 µF | ±20% | 2.5 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
PCK0E222MCO1GSCAP ALUM POLY 2200UF 20% 2.5V Nichicon |
425 |
|
Datasheet |
PCK | Tape & Reel (TR) | Active | Polymer | 2200 µF | ±20% | 2.5 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
RNL1C821MDS1PXCAP ALUM POLY 820UF 20% 16V TH Nichicon |
1,011 |
|
Datasheet |
FPCAP, RNL | Cut Tape (CT) | Active | Polymer | 820 µF | ±20% | 16 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 750 mA @ 120 Hz | 7.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.846" (21.50mm) | - | Through Hole |
|
PLE0J471MDO1CAP ALUM POLY 470UF 20% 6.3V TH Nichicon |
378 |
|
Datasheet |
PLE | Bulk | Not For New Designs | Polymer | 470 µF | ±20% | 6.3 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.4 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
PCZ1E151MCL6GSCAP ALUM POLY 150UF 20% 25V SMD Nichicon |
821 |
|
Datasheet |
PCZ | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 25 V | 20mOhm | 2000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 90 mA @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCF0J821MCL1GSCAP ALUM POLY 820UF 20% 6.3V SMD Nichicon |
381 |
|
Datasheet |
PCF | Tape & Reel (TR) | Active | Polymer | 820 µF | ±20% | 6.3 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 5.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
